Radionuclide Dosimetric Data Sheets
Yttrium-94
Summary data
General
Classification
Isotope: Y-94
Atomic number (Z): 39
Mass number (A): 94
Neutron number (N): 55
Radioactive decay
Decay modes: β-
Half-life: 18.7 [m]
Decay constant: 6.1778e-04 [1/s]
Daughters: Zr-94 (100.0%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 1.81329 [MeV]
Mean photon energy: 0.77245 [MeV]
Air kerma rate constant, Γ10: 2.707e-17 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 2.707e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 2.905e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
2.905e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 1.238e-13
[Gy·kg/Bq·s]

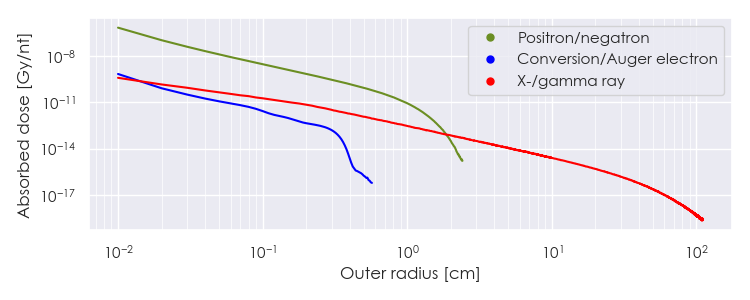

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Y-94 DPK.csv

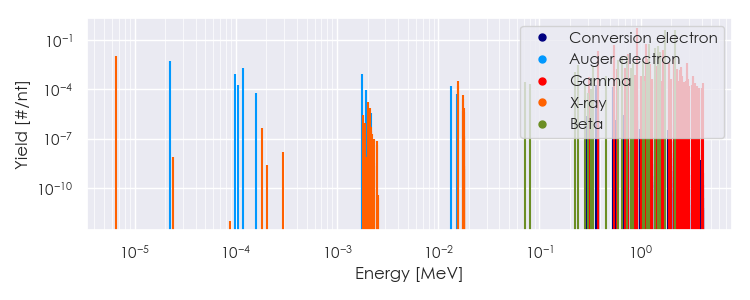

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Y-94 Summary Spectrum.csv

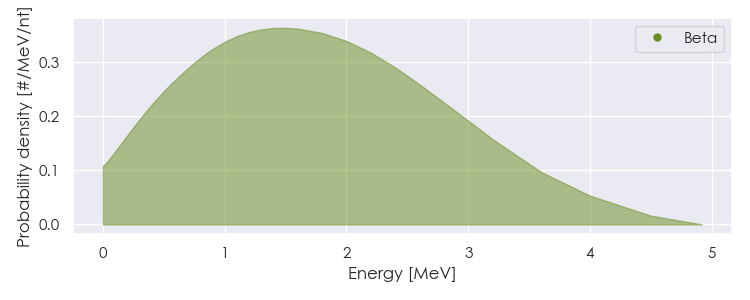

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Y-94 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Y-94 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
6.52413e-06 |
1.047e-02 |
X-ray |
|
3.81600e-01 |
2.016e-02 |
Gamma |
|
5.50900e-01 |
4.928e-02 |
Gamma |
|
7.52600e-01 |
1.400e-02 |
Gamma |
|
9.18740e-01 |
5.600e-01 |
Gamma |
|
1.13890e+00 |
5.992e-02 |
Gamma |
|
1.67140e+00 |
2.464e-02 |
Gamma |
|
7.33283e-01 |
1.009e-02 |
Beta |
|
1.19954e+00 |
5.294e-02 |
Beta |
|
1.38247e+00 |
3.296e-02 |
Beta |
|
1.47646e+00 |
4.095e-02 |
Beta |
|
1.55638e+00 |
1.828e-02 |
Beta |
|
1.74148e+00 |
3.955e-01 |
Beta |
|
2.17487e+00 |
4.095e-01 |
Beta |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
