Radionuclide Dosimetric Data Sheets
Yttrium-86m
Summary data
General
Classification
Isotope: Y-86m
Atomic number (Z): 39
Mass number (A): 86
Neutron number (N): 47
Radioactive decay
Decay modes: β+, Electron capture, Internal
transition
Half-life: 48.0 [m]
Decay constant: 2.4068e-04 [1/s]
Daughters: Y-86 (99.3%), Sr-86 (0.69%)
Radioactive daughters: Y-86
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.0243 [MeV]
Mean photon energy: 0.22029 [MeV]
Air kerma rate constant, Γ10: 8.371e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 8.541e-18 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 3.893e-15 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
3.893e-15 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 3.529e-14
[Gy·kg/Bq·s]

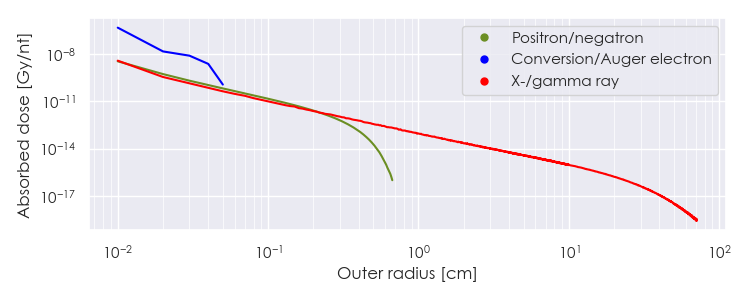

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Y-86m DPK.csv

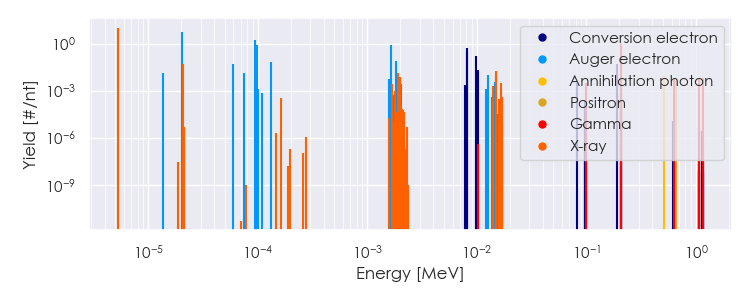

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Y-86m Summary Spectrum.csv

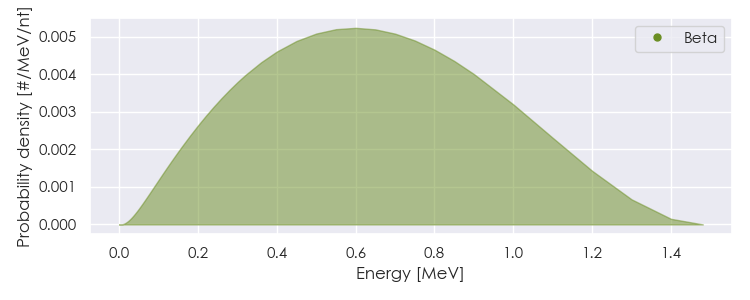

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Y-86m Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Y-86m Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
5.29799e-06 |
1.030e+01 |
X-ray |
|
2.09385e-05 |
5.027e-02 |
X-ray |
|
1.91499e-03 |
1.301e-02 |
X-ray |
|
1.49185e-02 |
1.909e-02 |
X-ray |
|
2.08100e-01 |
9.375e-01 |
Gamma |
|
1.36397e-05 |
1.400e-02 |
Auger electron |
|
2.03148e-05 |
5.725e+00 |
Auger electron |
|
5.93504e-05 |
4.654e-02 |
Auger electron |
|
7.49243e-05 |
1.398e-02 |
Auger electron |
|
9.43756e-05 |
1.749e+00 |
Auger electron |
|
9.77770e-05 |
8.140e-01 |
Auger electron |
|
1.31067e-04 |
6.414e-02 |
Auger electron |
|
1.65966e-03 |
7.650e-01 |
Auger electron |
|
1.82092e-03 |
7.579e-02 |
Auger electron |
|
8.04030e-03 |
2.982e-01 |
Conversion electron |
|
8.11850e-03 |
5.101e-01 |
Conversion electron |
|
9.90008e-03 |
1.623e-01 |
Conversion electron |
|
1.02000e-02 |
2.035e-02 |
Conversion electron |
|
1.26657e-02 |
1.025e-02 |
Auger electron |
|
1.91100e-01 |
4.817e-02 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
