Radionuclide Dosimetric Data Sheets
Xenon-135m
Summary data
General
Classification
Isotope: Xe-135m
Atomic number (Z): 54
Mass number (A): 135
Neutron number (N): 81
Radioactive decay
Decay modes: β-, Internal transition
Half-life: 15.29 [m]
Decay constant: 7.5556e-04 [1/s]
Daughters: Xe-135 (99.4%), Cs-135 (0.6%)
Radioactive daughters: Xe-135, Cs-135
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.10078 [MeV]
Mean photon energy: 0.42491 [MeV]
Air kerma rate constant, Γ10: 1.672e-17 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 1.672e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 1.615e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
1.615e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 6.808e-14
[Gy·kg/Bq·s]

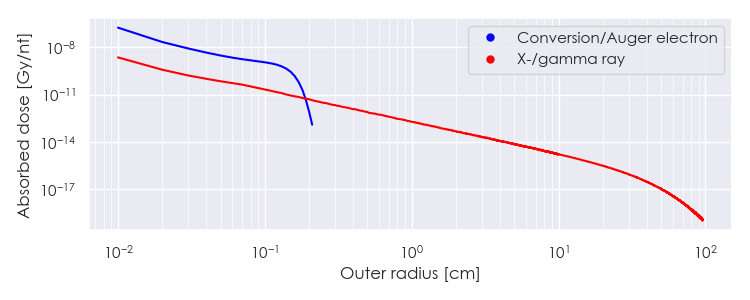

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Xe-135m DPK.csv

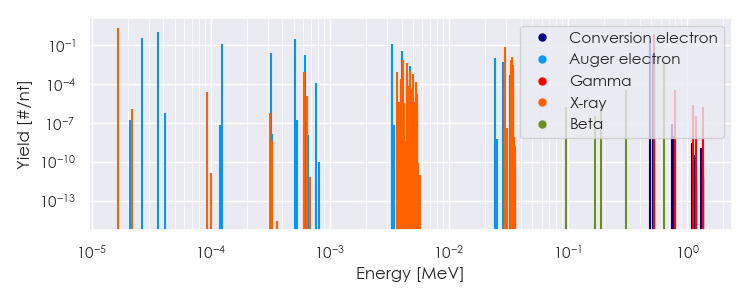

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Xe-135m Summary Spectrum.csv

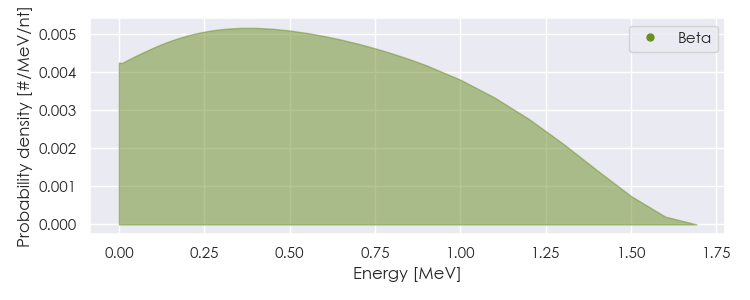

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Xe-135m Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Xe-135m Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
1.66175e-05 |
2.268e+00 |
X-ray |
|
2.94521e-02 |
3.957e-02 |
X-ray |
|
2.97812e-02 |
7.329e-02 |
X-ray |
|
3.36295e-02 |
1.334e-02 |
X-ray |
|
5.26561e-01 |
7.987e-01 |
Gamma |
|
2.61963e-05 |
3.540e-01 |
Auger electron |
|
3.62457e-05 |
1.079e+00 |
Auger electron |
|
1.23815e-04 |
1.333e-01 |
Auger electron |
|
3.23009e-04 |
2.609e-02 |
Auger electron |
|
5.05231e-04 |
2.951e-01 |
Auger electron |
|
6.17585e-04 |
1.689e-02 |
Auger electron |
|
3.32730e-03 |
1.162e-01 |
Auger electron |
|
4.00481e-03 |
3.448e-02 |
Auger electron |
|
2.44715e-02 |
1.113e-02 |
Auger electron |
|
4.92005e-01 |
1.546e-01 |
Conversion electron |
|
5.21144e-01 |
2.265e-02 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
