Radionuclide Dosimetric Data Sheets
Xenon-133
Summary data
General
Classification
Isotope: Xe-133
Atomic number (Z): 54
Mass number (A): 133
Neutron number (N): 79
Radioactive decay
Decay modes: β-
Half-life: 5.243 [d]
Decay constant: 1.5301e-06 [1/s]
Daughters: Cs-133 (100.0%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.13791 [MeV]
Mean photon energy: 0.04744 [MeV]
Air kerma rate constant, Γ10: 3.630e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 3.630e-18 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 2.210e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
2.210e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 7.601e-15
[Gy·kg/Bq·s]

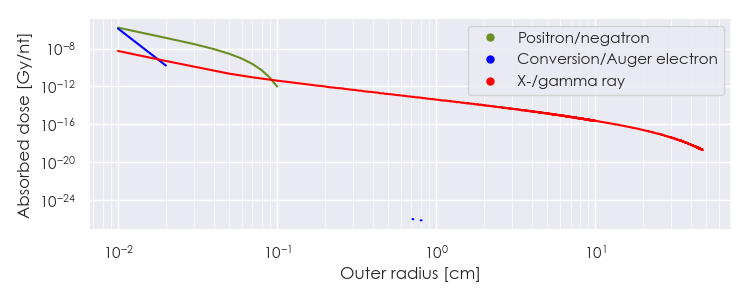

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Xe-133 DPK.csv

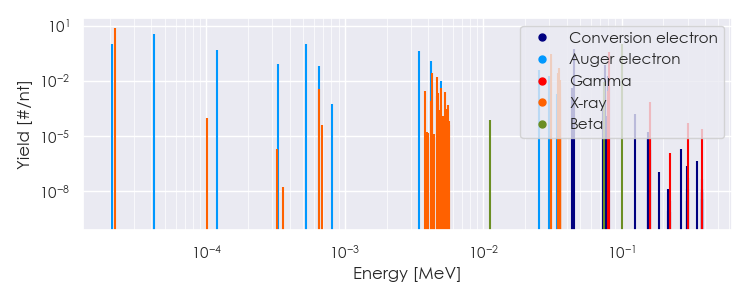

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Xe-133 Summary Spectrum.csv

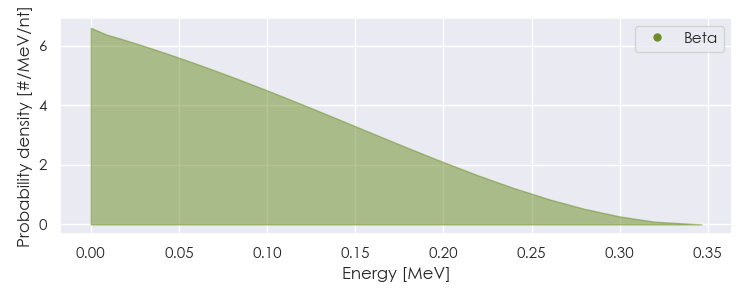

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Xe-133 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Xe-133 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
2.18868e-05 |
7.666e+00 |
X-ray |
|
4.27312e-03 |
2.659e-02 |
X-ray |
|
4.61551e-03 |
1.577e-02 |
X-ray |
|
3.06218e-02 |
1.439e-01 |
X-ray |
|
3.09789e-02 |
2.657e-01 |
X-ray |
|
3.49256e-02 |
2.517e-02 |
X-ray |
|
3.49944e-02 |
4.879e-02 |
X-ray |
|
3.58172e-02 |
1.032e-02 |
X-ray |
|
8.09970e-02 |
3.800e-01 |
Gamma |
|
1.00602e-01 |
9.918e-01 |
Beta |
|
2.09032e-05 |
1.020e+00 |
Auger electron |
|
4.14369e-05 |
3.639e+00 |
Auger electron |
|
1.19584e-04 |
4.462e-01 |
Auger electron |
|
3.28252e-04 |
8.542e-02 |
Auger electron |
|
5.28219e-04 |
1.002e+00 |
Auger electron |
|
6.52650e-04 |
6.570e-02 |
Auger electron |
|
3.44498e-03 |
3.943e-01 |
Auger electron |
|
4.16592e-03 |
1.216e-01 |
Auger electron |
|
2.53980e-02 |
3.773e-02 |
Auger electron |
|
2.98089e-02 |
1.715e-02 |
Auger electron |
|
4.50120e-02 |
5.542e-01 |
Conversion electron |
|
7.53121e-02 |
6.749e-02 |
Conversion electron |
|
8.00063e-02 |
1.730e-02 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
