Radionuclide Dosimetric Data Sheets
Xenon-131m
Summary data
General
Classification
Isotope: Xe-131m
Atomic number (Z): 54
Mass number (A): 131
Neutron number (N): 77
Radioactive decay
Decay modes: Internal transition
Half-life: 11.84 [d]
Decay constant: 6.7758e-07 [1/s]
Daughters: Xe-131 (100.0%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.14704 [MeV]
Mean photon energy: 0.02057 [MeV]
Air kerma rate constant, Γ10: 3.297e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 3.297e-18 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 2.356e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
2.356e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 3.296e-15
[Gy·kg/Bq·s]

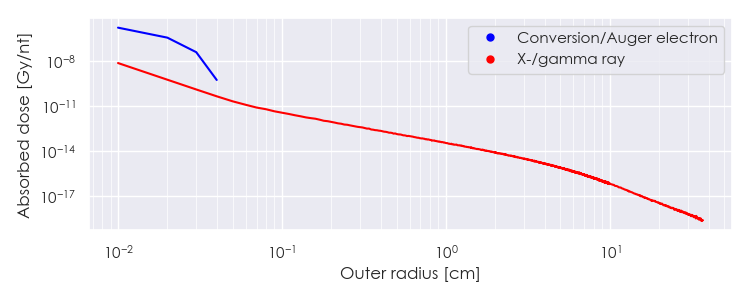

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Xe-131m DPK.csv
Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Xe-131m Summary Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Xe-131m Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
1.66194e-05 |
1.161e+01 |
X-ray |
|
4.09719e-03 |
3.734e-02 |
X-ray |
|
4.41300e-03 |
1.919e-02 |
X-ray |
|
2.94521e-02 |
1.587e-01 |
X-ray |
|
2.97812e-02 |
2.940e-01 |
X-ray |
|
3.35665e-02 |
2.759e-02 |
X-ray |
|
3.36295e-02 |
5.350e-02 |
X-ray |
|
3.44080e-02 |
1.128e-02 |
X-ray |
|
1.63930e-01 |
1.950e-02 |
Gamma |
|
2.62208e-05 |
1.819e+00 |
Auger electron |
|
3.62500e-05 |
5.518e+00 |
Auger electron |
|
1.23213e-04 |
6.897e-01 |
Auger electron |
|
3.32250e-04 |
1.379e-01 |
Auger electron |
|
5.05475e-04 |
1.502e+00 |
Auger electron |
|
6.18291e-04 |
8.615e-02 |
Auger electron |
|
3.32467e-03 |
5.882e-01 |
Auger electron |
|
4.00246e-03 |
1.745e-01 |
Auger electron |
|
4.70763e-03 |
1.326e-02 |
Auger electron |
|
2.44715e-02 |
4.463e-02 |
Auger electron |
|
2.86854e-02 |
1.996e-02 |
Auger electron |
|
1.29374e-01 |
6.201e-01 |
Conversion electron |
|
1.58513e-01 |
1.436e-01 |
Conversion electron |
|
1.58826e-01 |
3.297e-02 |
Conversion electron |
|
1.59155e-01 |
1.208e-01 |
Conversion electron |
|
1.63003e-01 |
6.876e-02 |
Conversion electron |
|
1.63930e-01 |
1.681e-02 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
