Radionuclide Dosimetric Data Sheets
Titanium-52
Summary data
General
Classification
Isotope: Ti-52
Atomic number (Z): 22
Mass number (A): 52
Neutron number (N): 30
Radioactive decay
Decay modes: β-
Half-life: 1.7 [m]
Decay constant: 6.7956e-03 [1/s]
Daughters: V-52 (100.0%)
Radioactive daughters: V-52
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.75304 [MeV]
Mean photon energy: 0.12819 [MeV]
Air kerma rate constant, Γ10: 7.232e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 7.232e-18 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 1.207e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
1.207e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 2.054e-14
[Gy·kg/Bq·s]

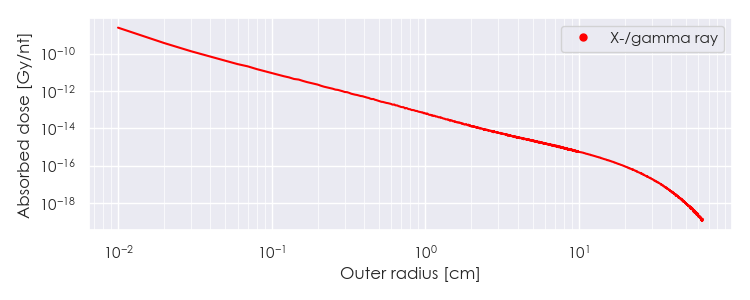

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Ti-52 DPK.csv

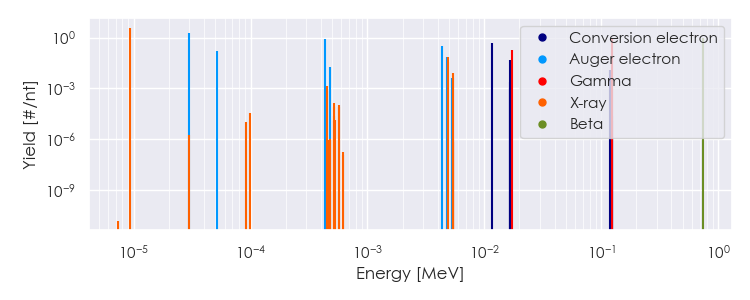

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Ti-52 Summary Spectrum.csv

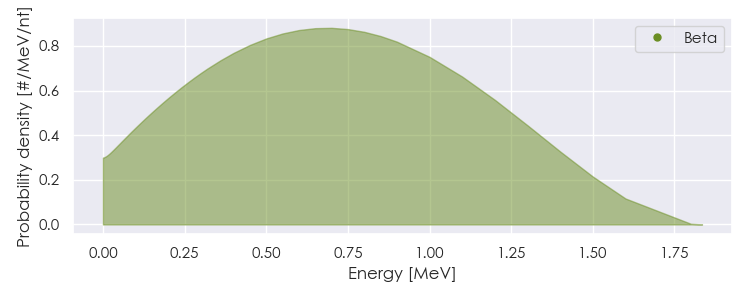

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Ti-52 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Ti-52 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
9.23982e-06 |
3.889e+00 |
X-ray |
|
4.90772e-03 |
3.759e-02 |
X-ray |
|
4.91506e-03 |
7.389e-02 |
X-ray |
|
1.71530e-02 |
1.800e-01 |
Gamma |
|
1.24453e-01 |
1.000e+00 |
Gamma |
|
7.42688e-01 |
1.000e+00 |
Beta |
|
3.00131e-05 |
1.912e+00 |
Auger electron |
|
5.14571e-05 |
1.705e-01 |
Auger electron |
|
4.35347e-04 |
8.374e-01 |
Auger electron |
|
4.81733e-04 |
1.730e-02 |
Auger electron |
|
4.34375e-03 |
3.110e-01 |
Auger electron |
|
4.83456e-03 |
7.319e-02 |
Auger electron |
|
1.17134e-02 |
5.014e-01 |
Conversion electron |
|
1.65292e-02 |
4.594e-02 |
Conversion electron |
|
1.19013e-01 |
1.147e-02 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
