Radionuclide Dosimetric Data Sheets
Titanium-44
Summary data
General
Classification
Isotope: Ti-44
Atomic number (Z): 22
Mass number (A): 44
Neutron number (N): 22
Radioactive decay
Decay modes: Electron capture
Half-life: 60.0 [y]
Decay constant: 3.6608e-10 [1/s]
Daughters: Sc-44 (100.0%)
Radioactive daughters: Sc-44
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.01081 [MeV]
Mean photon energy: 0.13961 [MeV]
Air kerma rate constant, Γ10: 4.547e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 4.547e-18 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 1.732e-15 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
1.732e-15 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 2.237e-14
[Gy·kg/Bq·s]

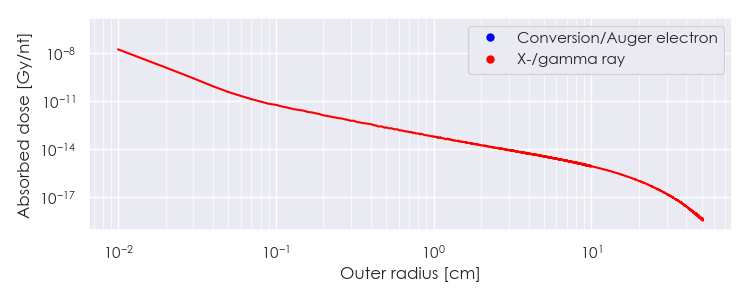

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Ti-44 DPK.csv

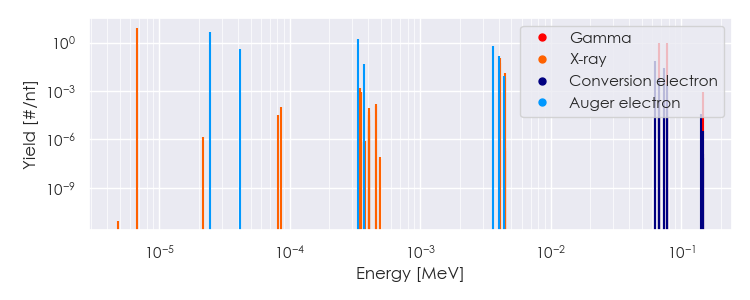

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Ti-44 Summary Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Ti-44 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
6.75357e-06 |
8.347e+00 |
X-ray |
|
4.05212e-03 |
5.556e-02 |
X-ray |
|
4.05694e-03 |
1.095e-01 |
X-ray |
|
4.42674e-03 |
1.213e-02 |
X-ray |
|
6.78679e-02 |
9.303e-01 |
Gamma |
|
7.83600e-02 |
9.640e-01 |
Gamma |
|
2.43494e-05 |
4.354e+00 |
Auger electron |
|
4.16821e-05 |
3.738e-01 |
Auger electron |
|
3.31108e-04 |
1.666e+00 |
Auger electron |
|
3.71964e-04 |
4.391e-02 |
Auger electron |
|
3.60876e-03 |
6.469e-01 |
Auger electron |
|
3.99167e-03 |
1.469e-01 |
Auger electron |
|
6.34021e-02 |
7.206e-02 |
Conversion electron |
|
7.38942e-02 |
2.668e-02 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
