Radionuclide Dosimetric Data Sheets
Technetium-93
Summary data
General
Classification
Isotope: Tc-93
Atomic number (Z): 43
Mass number (A): 93
Neutron number (N): 50
Radioactive decay
Decay modes: β+, Electron capture
Half-life: 2.75 [h]
Decay constant: 7.0015e-05 [1/s]
Daughters: Mo-93 (100.0%)
Radioactive daughters: Mo-93
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.04359 [MeV]
Mean photon energy: 1.56864 [MeV]
Air kerma rate constant, Γ10: 5.830e-17 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 6.253e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 6.984e-15 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
6.984e-15 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 2.513e-13
[Gy·kg/Bq·s]

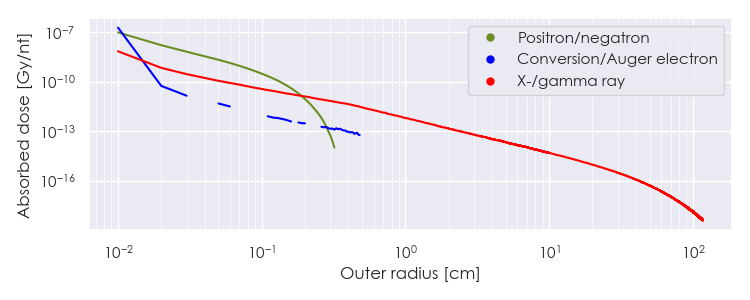

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Tc-93 DPK.csv

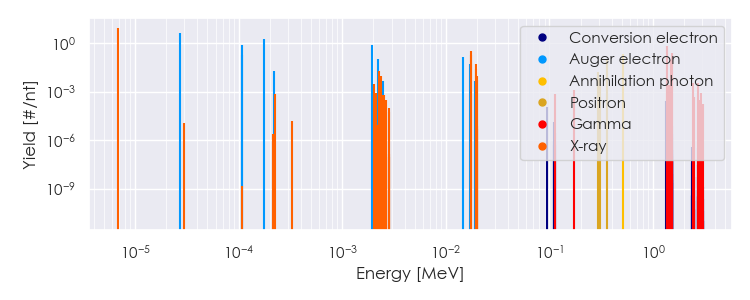

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Tc-93 Summary Spectrum.csv
Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Tc-93 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Tc-93 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
6.84801e-06 |
8.984e+00 |
X-ray |
|
2.28400e-03 |
1.855e-02 |
X-ray |
|
1.73355e-02 |
1.713e-01 |
X-ray |
|
1.74440e-02 |
3.264e-01 |
X-ray |
|
1.95554e-02 |
2.659e-02 |
X-ray |
|
1.95734e-02 |
5.176e-02 |
X-ray |
|
5.11000e-01 |
2.183e-01 |
Annihilation photon |
|
1.36294e+00 |
6.620e-01 |
Gamma |
|
1.47714e+00 |
8.672e-02 |
Gamma |
|
1.52028e+00 |
2.436e-01 |
Gamma |
|
2.92455e-01 |
1.589e-02 |
Positron |
|
3.60688e-01 |
8.625e-02 |
Positron |
|
2.73603e-05 |
4.161e+00 |
Auger electron |
|
1.06663e-04 |
7.916e-01 |
Auger electron |
|
1.06808e-04 |
1.759e-01 |
Auger electron |
|
1.76245e-04 |
1.896e+00 |
Auger electron |
|
2.18178e-04 |
1.817e-02 |
Auger electron |
|
1.95196e-03 |
7.552e-01 |
Auger electron |
|
2.20126e-03 |
1.070e-01 |
Auger electron |
|
1.47064e-02 |
1.305e-01 |
Auger electron |
|
1.69714e-02 |
4.835e-02 |
Auger electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
