Radionuclide Dosimetric Data Sheets
Tin-130
Summary data
General
Classification
Isotope: Sn-130
Atomic number (Z): 50
Mass number (A): 130
Neutron number (N): 80
Radioactive decay
Decay modes: β-
Half-life: 3.72 [m]
Decay constant: 3.1055e-03 [1/s]
Daughters: Sb-130m (100.0%)
Radioactive daughters: Sb-130m
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.46118 [MeV]
Mean photon energy: 0.93717 [MeV]
Air kerma rate constant, Γ10: 3.757e-17 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 3.757e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 7.389e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
7.389e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 1.502e-13
[Gy·kg/Bq·s]

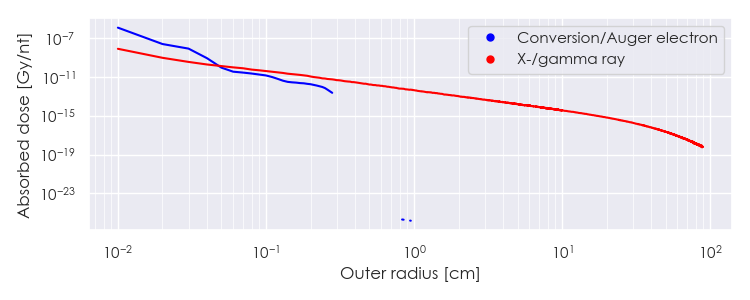

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Sn-130 DPK.csv

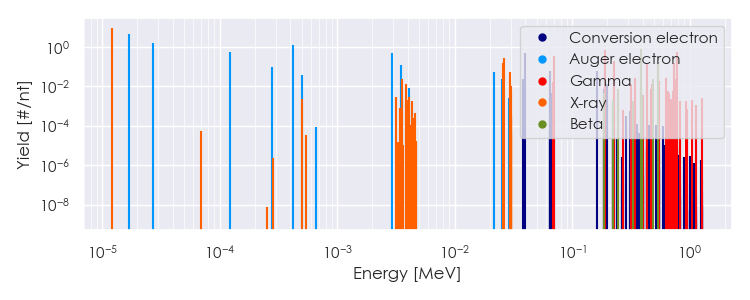

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Sn-130 Summary Spectrum.csv

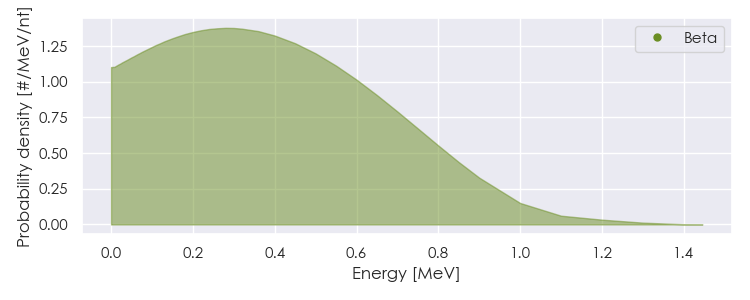

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Sn-130 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Sn-130 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
1.22326e-05 |
9.479e+00 |
X-ray |
|
3.59266e-03 |
2.303e-02 |
X-ray |
|
3.83820e-03 |
1.329e-02 |
X-ray |
|
2.60930e-02 |
1.543e-01 |
X-ray |
|
2.63486e-02 |
2.880e-01 |
X-ray |
|
2.96698e-02 |
2.625e-02 |
X-ray |
|
2.97173e-02 |
5.094e-02 |
X-ray |
|
3.03709e-02 |
1.059e-02 |
X-ray |
|
6.90900e-02 |
1.581e-02 |
Gamma |
|
7.00100e-02 |
3.410e-01 |
Gamma |
|
1.92419e-01 |
6.700e-01 |
Gamma |
|
2.29140e-01 |
1.953e-01 |
Gamma |
|
3.16480e-01 |
1.333e-02 |
Gamma |
|
3.41610e-01 |
2.687e-02 |
Gamma |
|
4.35050e-01 |
1.368e-01 |
Gamma |
|
4.82000e-01 |
1.347e-02 |
Gamma |
|
5.51370e-01 |
1.809e-02 |
Gamma |
|
6.27510e-01 |
2.646e-02 |
Gamma |
|
7.43660e-01 |
1.613e-01 |
Gamma |
|
7.44580e-01 |
2.479e-02 |
Gamma |
|
7.80440e-01 |
5.643e-01 |
Gamma |
|
3.88297e-01 |
7.946e-01 |
Beta |
|
4.85410e-01 |
2.414e-02 |
Beta |
|
5.35694e-01 |
1.619e-01 |
Beta |
|
1.68951e-05 |
4.666e+00 |
Auger electron |
|
2.73676e-05 |
1.572e+00 |
Auger electron |
|
1.22161e-04 |
5.257e-01 |
Auger electron |
|
2.81091e-04 |
9.369e-02 |
Auger electron |
|
4.22443e-04 |
1.184e+00 |
Auger electron |
|
5.04589e-04 |
3.583e-02 |
Auger electron |
|
2.96436e-03 |
4.666e-01 |
Auger electron |
|
3.51900e-03 |
1.263e-01 |
Auger electron |
|
2.17904e-02 |
5.381e-02 |
Auger electron |
|
2.54497e-02 |
2.331e-02 |
Auger electron |
|
3.86110e-02 |
2.476e-02 |
Conversion electron |
|
3.95310e-02 |
5.139e-01 |
Conversion electron |
|
6.53363e-02 |
6.154e-02 |
Conversion electron |
|
6.92483e-02 |
1.332e-02 |
Conversion electron |
|
1.61940e-01 |
5.954e-02 |
Conversion electron |
|
1.98661e-01 |
1.299e-02 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
