Radionuclide Dosimetric Data Sheets
Tin-125m
Summary data
General
Classification
Isotope: Sn-125m
Atomic number (Z): 50
Mass number (A): 125
Neutron number (N): 75
Radioactive decay
Decay modes: β-
Half-life: 9.52 [m]
Decay constant: 1.2135e-03 [1/s]
Daughters: Sb-125 (100.0%)
Radioactive daughters: Sb-125
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.80701 [MeV]
Mean photon energy: 0.34636 [MeV]
Air kerma rate constant, Γ10: 1.288e-17 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 1.288e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 1.293e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
1.293e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 5.549e-14
[Gy·kg/Bq·s]

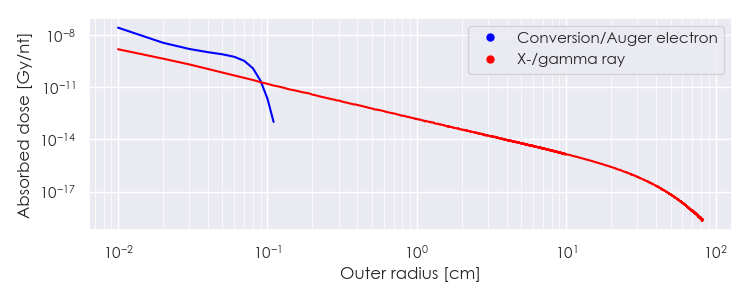

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Sn-125m DPK.csv
Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Sn-125m Summary Spectrum.csv

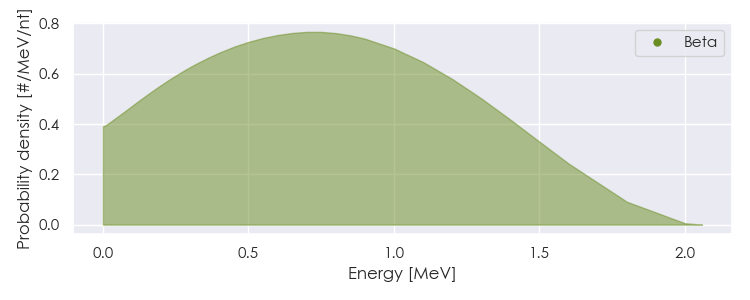

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Sn-125m Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Sn-125m Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
1.22326e-05 |
3.185e-01 |
X-ray |
|
3.31900e-01 |
9.720e-01 |
Gamma |
|
8.08869e-01 |
9.817e-01 |
Beta |
|
1.68947e-05 |
1.568e-01 |
Auger electron |
|
2.73678e-05 |
5.282e-02 |
Auger electron |
|
1.22164e-04 |
1.766e-02 |
Auger electron |
|
4.22427e-04 |
3.981e-02 |
Auger electron |
|
2.96389e-03 |
1.568e-02 |
Auger electron |
|
3.01421e-01 |
2.070e-02 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
