Radionuclide Dosimetric Data Sheets
Antimony-122
Summary data
General
Classification
Isotope: Sb-122
Atomic number (Z): 51
Mass number (A): 122
Neutron number (N): 71
Radioactive decay
Decay modes: β-, β+, Electron capture
Half-life: 2.724 [d]
Decay constant: 2.9453e-06 [1/s]
Daughters: Te-122 (97.6%), Sn-122 (2.41%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.56183 [MeV]
Mean photon energy: 0.44532 [MeV]
Air kerma rate constant, Γ10: 1.690e-17 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 1.690e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 9.002e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
9.002e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 7.135e-14
[Gy·kg/Bq·s]
Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Sb-122 DPK.csv

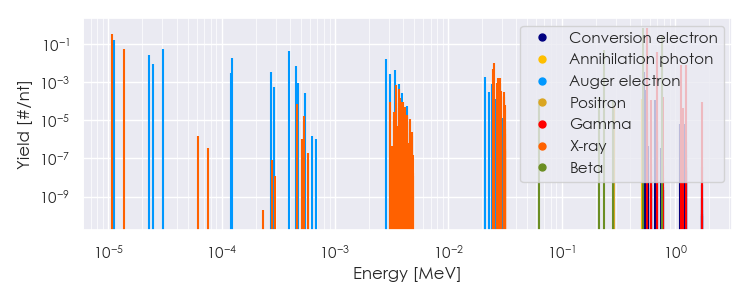

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Sb-122 Summary Spectrum.csv

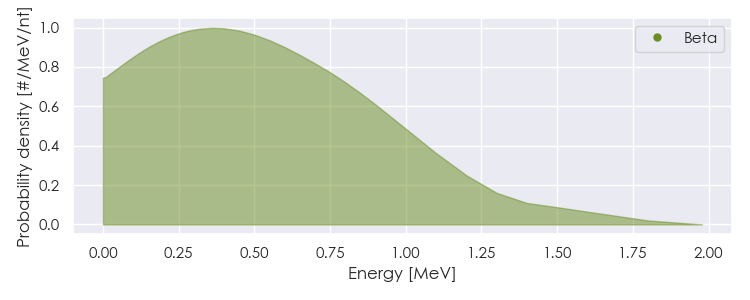

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Sb-122 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Sb-122 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
1.08543e-05 |
3.287e-01 |
X-ray |
|
1.36106e-05 |
5.500e-02 |
X-ray |
|
5.64240e-01 |
7.067e-01 |
Gamma |
|
6.92650e-01 |
3.852e-02 |
Gamma |
|
2.35625e-01 |
4.660e-02 |
Beta |
|
5.21184e-01 |
6.722e-01 |
Beta |
|
7.70975e-01 |
2.567e-01 |
Beta |
|
1.13316e-05 |
1.625e-01 |
Auger electron |
|
2.29207e-05 |
2.688e-02 |
Auger electron |
|
3.03580e-05 |
5.598e-02 |
Auger electron |
|
1.23811e-04 |
1.809e-02 |
Auger electron |
|
3.96353e-04 |
4.062e-02 |
Auger electron |
|
2.84936e-03 |
1.603e-02 |
Auger electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
