Radionuclide Dosimetric Data Sheets
Antimony-118
Summary data
General
Classification
Isotope: Sb-118
Atomic number (Z): 51
Mass number (A): 118
Neutron number (N): 67
Radioactive decay
Decay modes: β+, Electron capture
Half-life: 3.6 [m]
Decay constant: 3.2090e-03 [1/s]
Daughters: Sn-118 (100.0%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.87303 [MeV]
Mean photon energy: 0.80386 [MeV]
Air kerma rate constant, Γ10: 3.235e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 3.167e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 1.399e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
1.399e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 1.288e-13
[Gy·kg/Bq·s]

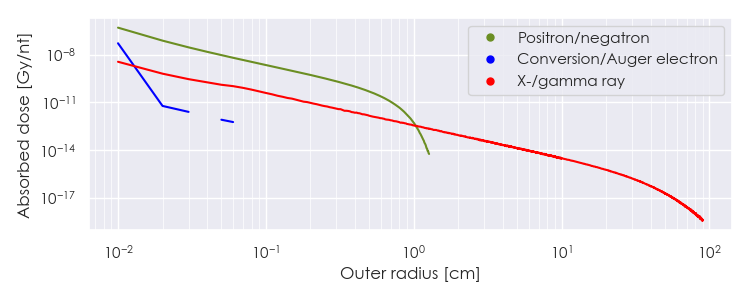

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Sb-118 DPK.csv

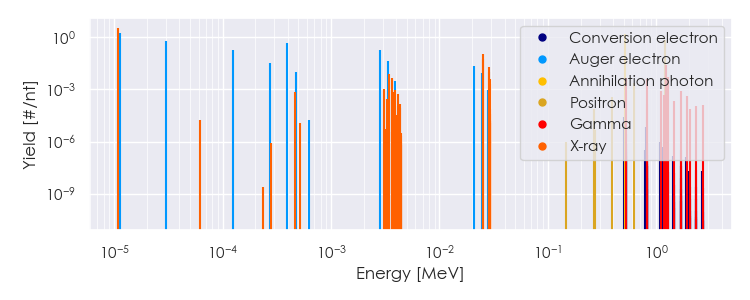

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Sb-118 Summary Spectrum.csv

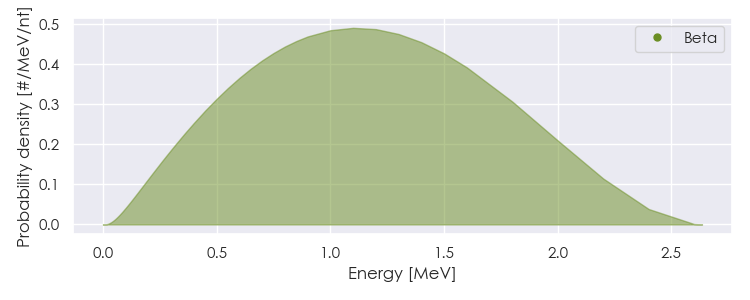

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Sb-118 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Sb-118 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
1.08543e-05 |
3.628e+00 |
X-ray |
|
2.50232e-02 |
5.664e-02 |
X-ray |
|
2.52572e-02 |
1.060e-01 |
X-ray |
|
2.84736e-02 |
1.856e-02 |
X-ray |
|
5.11000e-01 |
1.469e+00 |
Annihilation photon |
|
1.22933e+00 |
2.500e-02 |
Gamma |
|
1.18849e+00 |
7.318e-01 |
Positron |
|
1.13310e-05 |
1.794e+00 |
Auger electron |
|
3.03627e-05 |
6.173e-01 |
Auger electron |
|
1.23884e-04 |
1.993e-01 |
Auger electron |
|
2.72261e-04 |
3.551e-02 |
Auger electron |
|
3.96291e-04 |
4.491e-01 |
Auger electron |
|
4.70161e-04 |
1.023e-02 |
Auger electron |
|
2.84840e-03 |
1.773e-01 |
Auger electron |
|
3.36525e-03 |
4.569e-02 |
Auger electron |
|
2.09334e-02 |
2.136e-02 |
Auger electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
