Radionuclide Dosimetric Data Sheets
Rhodium-98
Summary data
General
Classification
Isotope: Rh-98
Atomic number (Z): 45
Mass number (A): 98
Neutron number (N): 53
Radioactive decay
Decay modes: β+, Electron capture
Half-life: 8.7 [m]
Decay constant: 1.3279e-03 [1/s]
Daughters: Ru-98 (100.0%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 1.33706 [MeV]
Mean photon energy: 1.8115 [MeV]
Air kerma rate constant, Γ10: 3.280e-17 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 6.769e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 2.142e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
2.142e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 2.902e-13
[Gy·kg/Bq·s]

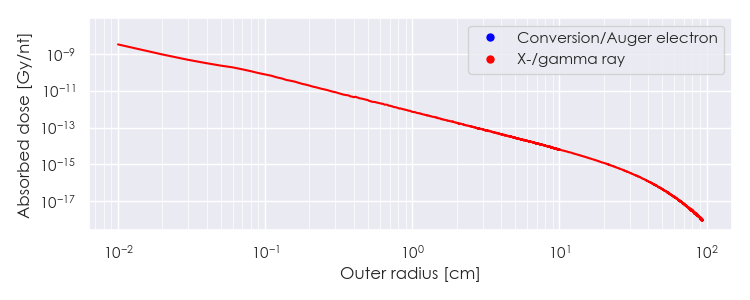

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Rh-98 DPK.csv
Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Rh-98 Summary Spectrum.csv
Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Rh-98 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Rh-98 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
8.90921e-06 |
9.004e-01 |
X-ray |
|
1.91152e-02 |
2.020e-02 |
X-ray |
|
1.92483e-02 |
3.832e-02 |
X-ray |
|
5.11000e-01 |
1.802e+00 |
Annihilation photon |
|
6.52600e-01 |
9.420e-01 |
Gamma |
|
7.62300e-01 |
1.696e-02 |
Gamma |
|
1.16440e+00 |
4.522e-02 |
Gamma |
|
1.41490e+00 |
1.130e-02 |
Gamma |
|
1.72350e+00 |
1.064e-02 |
Gamma |
|
1.81700e+00 |
4.710e-02 |
Gamma |
|
1.97340e+00 |
1.696e-02 |
Gamma |
|
2.52870e+00 |
1.036e-02 |
Gamma |
|
9.93004e-01 |
7.453e-02 |
Positron |
|
1.17950e+00 |
1.810e-02 |
Positron |
|
1.53759e+00 |
8.028e-01 |
Positron |
|
3.14530e-05 |
3.735e-01 |
Auger electron |
|
1.07938e-04 |
1.932e-02 |
Auger electron |
|
1.14222e-04 |
8.445e-02 |
Auger electron |
|
2.31913e-04 |
2.068e-01 |
Auger electron |
|
2.15879e-03 |
8.069e-02 |
Auger electron |
|
2.46829e-03 |
1.375e-02 |
Auger electron |
|
1.61570e-02 |
1.274e-02 |
Auger electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
