Radionuclide Dosimetric Data Sheets
Platinum-193
Summary data
General
Classification
Isotope: Pt-193
Atomic number (Z): 78
Mass number (A): 193
Neutron number (N): 115
Radioactive decay
Decay modes: Electron capture
Half-life: 50.0 [y]
Decay constant: 4.3930e-10 [1/s]
Daughters: Ir-193 (100.0%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.00714 [MeV]
Mean photon energy: 0.00258 [MeV]
Air kerma rate constant, Γ10: 4.734e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 4.734e-18 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 1.144e-15 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
1.144e-15 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 4.134e-16
[Gy·kg/Bq·s]
Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Pt-193 DPK.csv

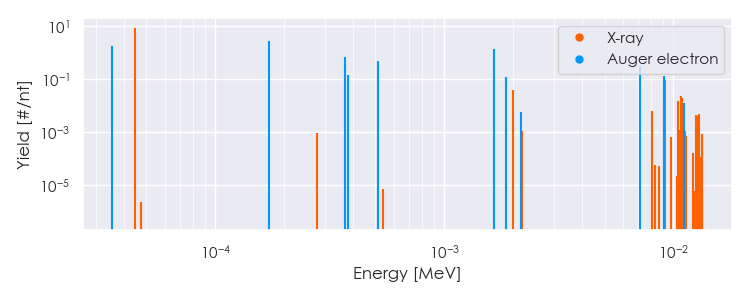

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Pt-193 Summary Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Pt-193 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
4.47711e-05 |
8.979e+00 |
X-ray |
|
1.99773e-03 |
4.017e-02 |
X-ray |
|
9.09081e-03 |
1.076e-02 |
X-ray |
|
9.16924e-03 |
9.486e-02 |
X-ray |
|
1.04958e-02 |
1.567e-02 |
X-ray |
|
1.07358e-02 |
2.312e-02 |
X-ray |
|
1.08570e-02 |
1.870e-02 |
X-ray |
|
1.09194e-02 |
1.736e-02 |
X-ray |
|
3.54551e-05 |
1.779e+00 |
Auger electron |
|
1.71100e-04 |
2.926e+00 |
Auger electron |
|
3.68061e-04 |
6.997e-01 |
Auger electron |
|
3.78536e-04 |
1.405e-01 |
Auger electron |
|
5.12751e-04 |
4.953e-01 |
Auger electron |
|
1.64436e-03 |
1.355e+00 |
Auger electron |
|
1.84872e-03 |
1.196e-01 |
Auger electron |
|
7.11129e-03 |
3.158e-01 |
Auger electron |
|
9.10019e-03 |
1.283e-01 |
Auger electron |
|
1.11313e-02 |
1.282e-02 |
Auger electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
