Radionuclide Dosimetric Data Sheets
Palladium-112
Summary data
General
Classification
Isotope: Pd-112
Atomic number (Z): 46
Mass number (A): 112
Neutron number (N): 66
Radioactive decay
Decay modes: β-
Half-life: 21.03 [h]
Decay constant: 9.1555e-06 [1/s]
Daughters: Ag-112 (100.0%)
Radioactive daughters: Ag-112
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.08998 [MeV]
Mean photon energy: 0.00508 [MeV]
Air kerma rate constant, Γ10: 4.312e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 4.312e-18 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 1.442e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
1.442e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 8.139e-16
[Gy·kg/Bq·s]

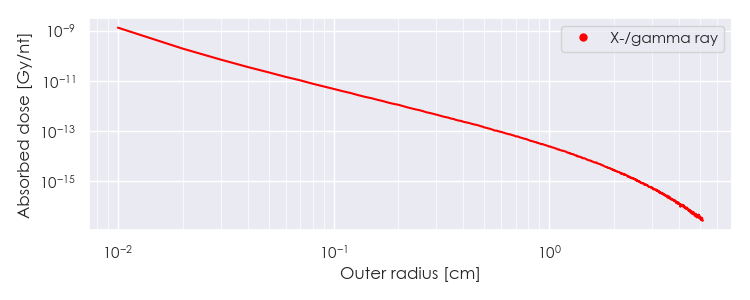

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Pd-112 DPK.csv

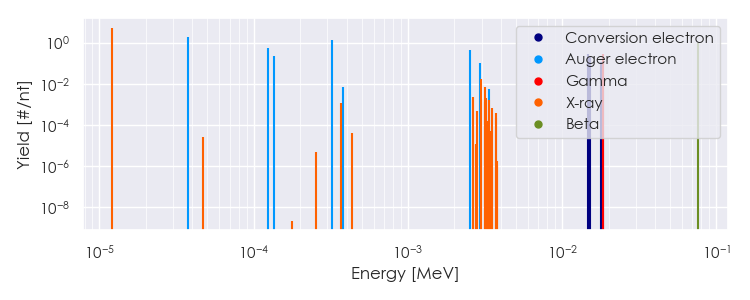

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Pd-112 Summary Spectrum.csv

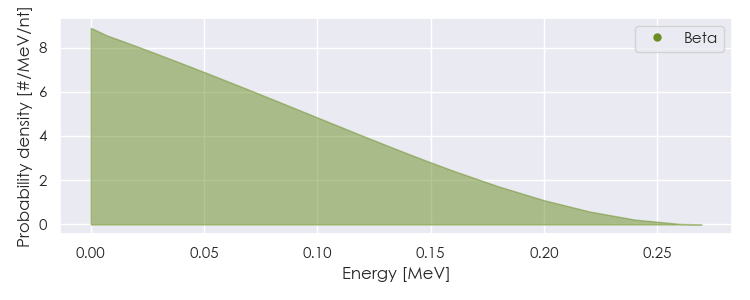

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Pd-112 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Pd-112 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
1.20753e-05 |
5.342e+00 |
X-ray |
|
2.97344e-03 |
1.711e-02 |
X-ray |
|
1.85000e-02 |
2.656e-01 |
Gamma |
|
7.65630e-02 |
1.000e+00 |
Beta |
|
3.76912e-05 |
1.966e+00 |
Auger electron |
|
1.24241e-04 |
5.382e-01 |
Auger electron |
|
1.35188e-04 |
2.345e-01 |
Auger electron |
|
3.19797e-04 |
1.299e+00 |
Auger electron |
|
2.50777e-03 |
4.589e-01 |
Auger electron |
|
2.91912e-03 |
9.989e-02 |
Auger electron |
|
1.47166e-02 |
2.790e-01 |
Conversion electron |
|
1.49719e-02 |
1.206e-01 |
Conversion electron |
|
1.51500e-02 |
2.004e-01 |
Conversion electron |
|
1.79315e-02 |
1.139e-01 |
Conversion electron |
|
1.85000e-02 |
2.056e-02 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
