Radionuclide Dosimetric Data Sheets
Lead-211
Summary data
General
Classification
Isotope: Pb-211
Atomic number (Z): 82
Mass number (A): 211
Neutron number (N): 129
Radioactive decay
Decay modes: β-
Half-life: 36.1 [m]
Decay constant: 3.2001e-04 [1/s]
Daughters: Bi-211 (100.0%)
Radioactive daughters: Bi-211
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.45425 [MeV]
Mean photon energy: 0.06441 [MeV]
Air kerma rate constant, Γ10: 2.595e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 2.595e-18 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 7.278e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
7.278e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 1.032e-14
[Gy·kg/Bq·s]

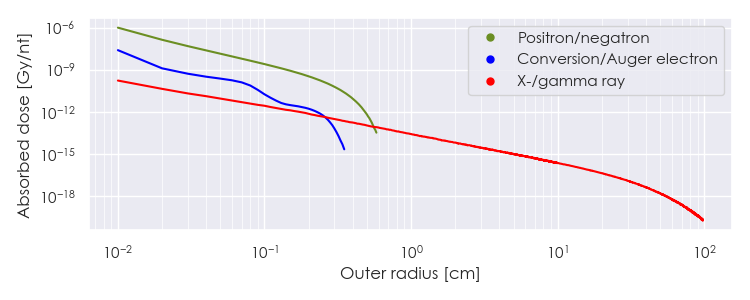

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Pb-211 DPK.csv

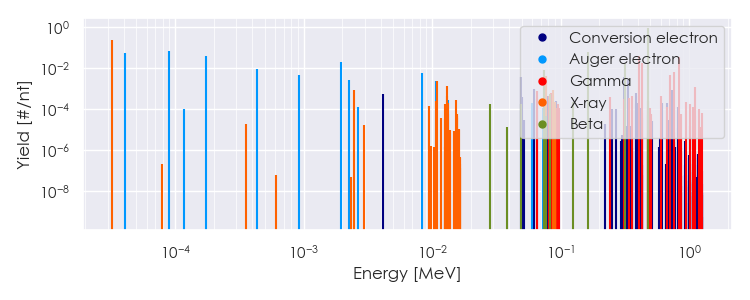

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Pb-211 Summary Spectrum.csv

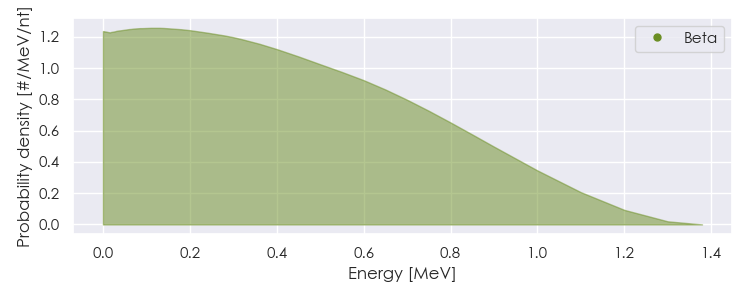

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Pb-211 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Pb-211 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
3.24791e-05 |
2.199e-01 |
X-ray |
|
4.04853e-01 |
3.783e-02 |
Gamma |
|
4.27088e-01 |
1.756e-02 |
Gamma |
|
8.32010e-01 |
3.524e-02 |
Gamma |
|
1.63851e-01 |
6.313e-02 |
Beta |
|
3.17812e-01 |
1.538e-02 |
Beta |
|
4.75603e-01 |
9.120e-01 |
Beta |
|
4.07268e-05 |
5.133e-02 |
Auger electron |
|
8.98333e-05 |
6.990e-02 |
Auger electron |
|
1.73916e-04 |
3.715e-02 |
Auger electron |
|
1.96156e-03 |
1.988e-02 |
Auger electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
