Summary data

General

Classification

Isotope: N-16
Atomic number (Z): 7
Mass number (A): 16
Neutron number (N): 9

Radioactive decay

Decay modes: β-
Half-life: 7.13 [s]
Decay constant: 9.7216e-02 [1/s]
Daughters: O-16 (100.0%)
Radioactive daughters: None

Dosimetric constants

Mean alpha energy: 0.0 [MeV]
Mean electron energy: 2.76461 [MeV]
Mean photon energy: 4.49324 [MeV]
Air kerma rate constant, Γ₁₀: 9.579e-17 [Gy·m²/Bq·s]
Air kerma coefficient, K_air: 9.579e-17 [Gy·m²/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or electrons), Δ_wp: 4.429e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δ_α: 0.000e+00 [Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δ_β-,β+,e-: 4.429e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δ_p: 7.199e-13 [Gy·kg/Bq·s]

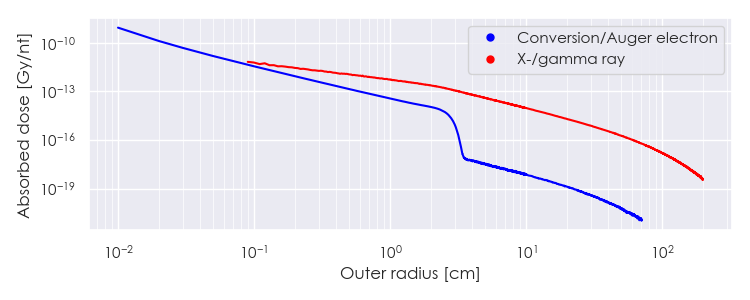

Dose point kernels (plot)

Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.

Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.

Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/N-16 DPK.csv

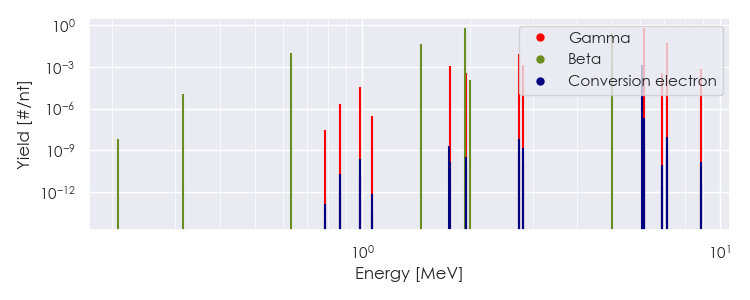

Summary spectra (plot)

Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).

Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/N-16 Summary Spectrum.csv

Beta spectra (plot)

Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).

Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/N-16 Beta Spectrum.csv

Tabulated data

Summary spectra (table)

Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).

Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.

Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/N-16 Summary Spectrum.csv

Energy [MeV]	Yield [#/nt] if > 0.01	Radiation type
6.12863e+00	6.700e-01	Gamma
7.11515e+00	4.900e-02	Gamma
6.31325e-01	1.059e-02	Beta
1.46312e+00	4.796e-02	Beta
1.94324e+00	6.615e-01	Beta
4.98063e+00	2.798e-01	Beta

Useful Links

Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:

National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/

International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html

Reference Links

ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107

Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789

MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
