Radionuclide Dosimetric Data Sheets
Manganese-58m
Summary data
General
Classification
Isotope: Mn-58m
Atomic number (Z): 25
Mass number (A): 58
Neutron number (N): 33
Radioactive decay
Decay modes: β-
Half-life: 65.2 [s]
Decay constant: 1.0631e-02 [1/s]
Daughters: Fe-58 (100.0%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 1.74428 [MeV]
Mean photon energy: 2.38541 [MeV]
Air kerma rate constant, Γ10: 8.181e-17 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 8.181e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 2.795e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
2.795e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 3.822e-13
[Gy·kg/Bq·s]

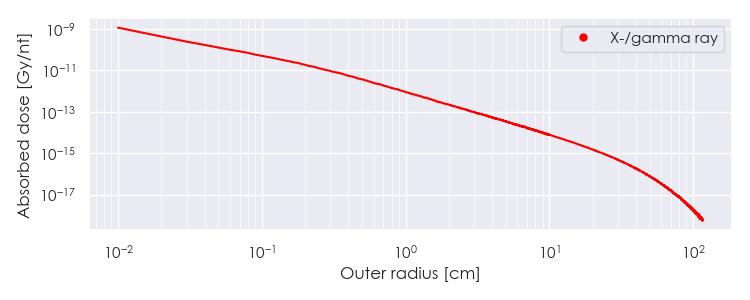

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Mn-58m DPK.csv

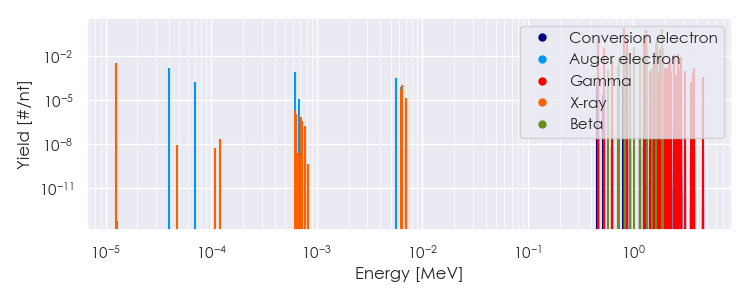

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Mn-58m Summary Spectrum.csv

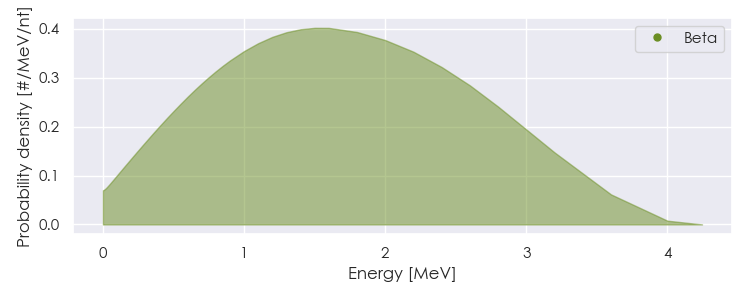

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Mn-58m Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Mn-58m Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
4.59160e-01 |
2.138e-01 |
Gamma |
|
4.66480e-01 |
1.267e-02 |
Gamma |
|
5.23860e-01 |
3.696e-02 |
Gamma |
|
8.10761e-01 |
8.800e-01 |
Gamma |
|
8.63940e-01 |
1.478e-01 |
Gamma |
|
9.25680e-01 |
1.681e-02 |
Gamma |
|
1.15677e+00 |
1.047e-02 |
Gamma |
|
1.26574e+00 |
9.064e-02 |
Gamma |
|
1.32309e+00 |
5.922e-01 |
Gamma |
|
1.67472e+00 |
1.162e-01 |
Gamma |
|
1.76774e+00 |
3.168e-02 |
Gamma |
|
1.78959e+00 |
2.860e-02 |
Gamma |
|
2.42245e+00 |
1.118e-02 |
Gamma |
|
2.63815e+00 |
1.329e-02 |
Gamma |
|
8.38321e-01 |
2.234e-02 |
Beta |
|
1.01280e+00 |
4.239e-02 |
Beta |
|
1.34321e+00 |
3.231e-02 |
Beta |
|
1.63590e+00 |
7.979e-02 |
Beta |
|
1.86180e+00 |
7.580e-01 |
Beta |
|
1.88963e+00 |
3.790e-02 |
Beta |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
