Radionuclide Dosimetric Data Sheets
Manganese-57
Summary data
General
Classification
Isotope: Mn-57
Atomic number (Z): 25
Mass number (A): 57
Neutron number (N): 32
Radioactive decay
Decay modes: β-
Half-life: 85.4 [s]
Decay constant: 8.1165e-03 [1/s]
Daughters: Fe-57 (100.0%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 1.10127 [MeV]
Mean photon energy: 0.09959 [MeV]
Air kerma rate constant, Γ10: 6.180e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 6.180e-18 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 1.764e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
1.764e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 1.596e-14
[Gy·kg/Bq·s]

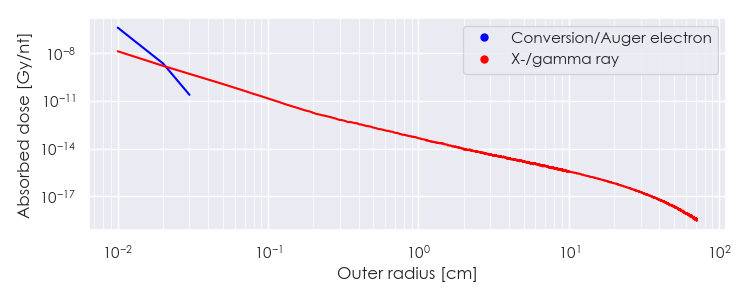

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Mn-57 DPK.csv

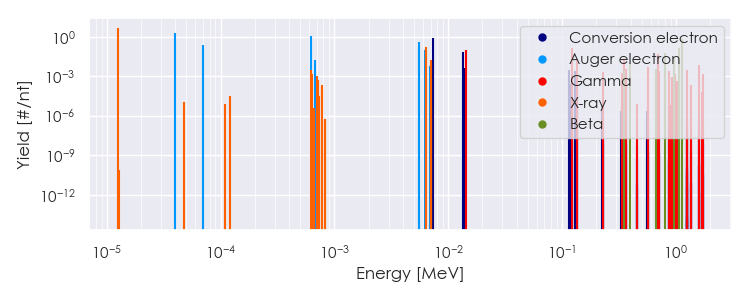

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Mn-57 Summary Spectrum.csv

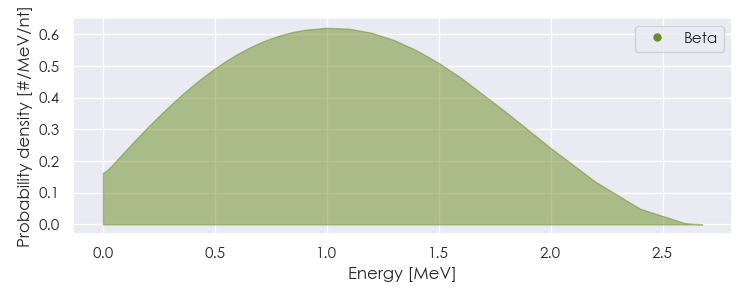

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Mn-57 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Mn-57 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
1.25338e-05 |
5.046e+00 |
X-ray |
|
6.34985e-03 |
8.036e-02 |
X-ray |
|
6.36272e-03 |
1.574e-01 |
X-ray |
|
7.01694e-03 |
1.903e-02 |
X-ray |
|
1.44129e-02 |
1.014e-01 |
Gamma |
|
1.22063e-01 |
1.391e-01 |
Gamma |
|
1.36476e-01 |
1.925e-02 |
Gamma |
|
3.52320e-01 |
2.090e-02 |
Gamma |
|
6.92000e-01 |
5.500e-02 |
Gamma |
|
3.92966e-01 |
1.097e-02 |
Beta |
|
8.08462e-01 |
6.285e-02 |
Beta |
|
9.67548e-01 |
2.195e-02 |
Beta |
|
1.07642e+00 |
1.496e-01 |
Beta |
|
1.13440e+00 |
7.482e-01 |
Beta |
|
4.01078e-05 |
2.161e+00 |
Auger electron |
|
6.97184e-05 |
2.337e-01 |
Auger electron |
|
6.26667e-04 |
1.234e+00 |
Auger electron |
|
6.73433e-04 |
1.659e-02 |
Auger electron |
|
5.58186e-03 |
4.175e-01 |
Auger electron |
|
6.25798e-03 |
1.022e-01 |
Auger electron |
|
7.32950e-03 |
7.869e-01 |
Conversion electron |
|
1.35699e-02 |
7.505e-02 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
