Radionuclide Dosimetric Data Sheets
Manganese-52
Summary data
General
Classification
Isotope: Mn-52
Atomic number (Z): 25
Mass number (A): 52
Neutron number (N): 27
Radioactive decay
Decay modes: β+, Electron capture
Half-life: 5.591 [d]
Decay constant: 1.4349e-06 [1/s]
Daughters: Cr-52 (100.0%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.07504 [MeV]
Mean photon energy: 3.45846 [MeV]
Air kerma rate constant, Γ10: 1.098e-16 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 1.213e-16 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 1.202e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
1.202e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 5.541e-13
[Gy·kg/Bq·s]
Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Mn-52 DPK.csv
Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Mn-52 Summary Spectrum.csv

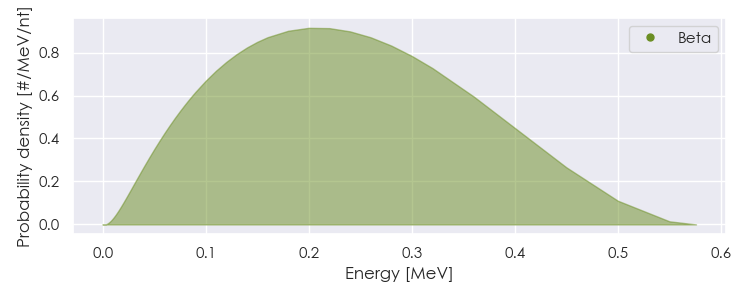

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Mn-52 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Mn-52 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
6.39125e-06 |
4.522e+00 |
X-ray |
|
5.36786e-03 |
5.173e-02 |
X-ray |
|
5.37679e-03 |
1.015e-01 |
X-ray |
|
5.90738e-03 |
1.171e-02 |
X-ray |
|
5.11000e-01 |
5.932e-01 |
Annihilation photon |
|
7.44233e-01 |
9.000e-01 |
Gamma |
|
8.48180e-01 |
3.320e-02 |
Gamma |
|
9.35544e-01 |
9.450e-01 |
Gamma |
|
1.24628e+00 |
4.210e-02 |
Gamma |
|
1.33365e+00 |
5.070e-02 |
Gamma |
|
1.43409e+00 |
1.000e+00 |
Gamma |
|
2.41799e-01 |
2.966e-01 |
Positron |
|
3.61104e-05 |
2.123e+00 |
Auger electron |
|
6.10580e-05 |
2.064e-01 |
Auger electron |
|
5.00645e-04 |
1.025e+00 |
Auger electron |
|
4.74513e-03 |
3.659e-01 |
Auger electron |
|
5.29315e-03 |
8.441e-02 |
Auger electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
