Radionuclide Dosimetric Data Sheets

Manganese-51

Isotope:  Mn-51
Atomic number (Z):  25
Mass number (A):  51
Neutron number (N):  26

Decay modes:  β+, Electron capture
Half-life:  46.2 [m]
Decay constant:  2.5005e-04 [1/s]
Daughters:  Cr-51 (100.0%)
Radioactive daughters:  Cr-51

Mean alpha energy:  0.0 [MeV]
Mean electron energy:  0.93435 [MeV]
Mean photon energy:  0.99772 [MeV]
Air kerma rate constant, Γ₁₀:  1.877e-19 [Gy·m²/Bq·s]
Air kerma coefficient, K_air:  3.777e-17 [Gy·m²/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or electrons), Δ_wp:  1.497e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δ_α:  0.000e+00 [Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δ_β-,β+,e-:  1.497e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δ_p:  1.599e-13 [Gy·kg/Bq·s]

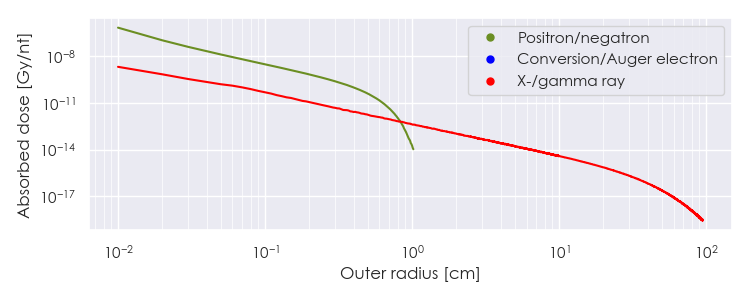

Dose point kernel source:  Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.

Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.

Download tabulated dose point kernel file here:  www.mirdsoft.org/products/MIRDspecs/Mn-51 DPK.csv

Spectra source:  ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).

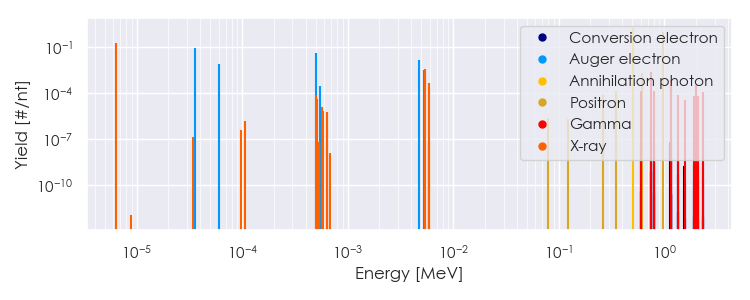

Download tabulated summary spectra file here:  www.mirdsoft.org/products/MIRDspecs/Mn-51 Summary Spectrum.csv

Spectra source:  ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).

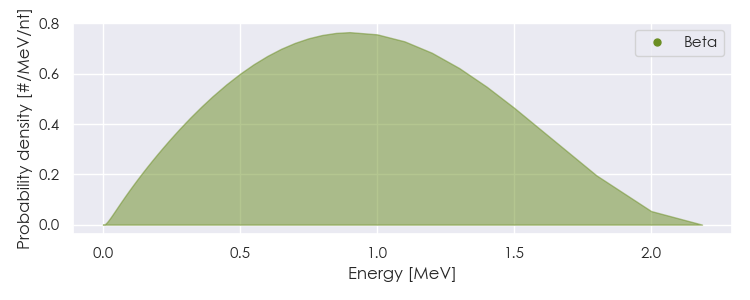

Download tabulated beta spectra file here:  www.mirdsoft.org/products/MIRDspecs/Mn-51 Beta Spectrum.csv



Spectra source:  ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).

Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.

Download tabulated summary spectra file here:  www.mirdsoft.org/products/MIRDspecs/Mn-51 Summary Spectrum.csv



Energy [MeV]	Yield [#/nt] if > 0.01	Radiation type
6.39125e-06	1.871e-01	X-ray
5.11000e-01	1.942e+00	Annihilation photon
9.63134e-01	9.686e-01	Positron
3.61108e-05	8.786e-02	Auger electron
5.00643e-04	4.240e-02	Auger electron
4.74513e-03	1.514e-02	Auger electron



Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:

National Nuclear Data Center (NNDC):  https://www.nndc.bnl.gov/nudat3/mird/

International Atomic Energy Agency (IAEA) Livechart:  https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html

ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107

Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789

MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6







MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
