Radionuclide Dosimetric Data Sheets
Lanthanum-136
Summary data
General
Classification
Isotope: La-136
Atomic number (Z): 57
Mass number (A): 136
Neutron number (N): 79
Radioactive decay
Decay modes: β+, Electron capture
Half-life: 9.87 [m]
Decay constant: 1.1705e-03 [1/s]
Daughters: Ba-136 (100.0%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.29406 [MeV]
Mean photon energy: 0.40703 [MeV]
Air kerma rate constant, Γ10: 3.511e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 1.718e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 4.711e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
4.711e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 6.521e-14
[Gy·kg/Bq·s]

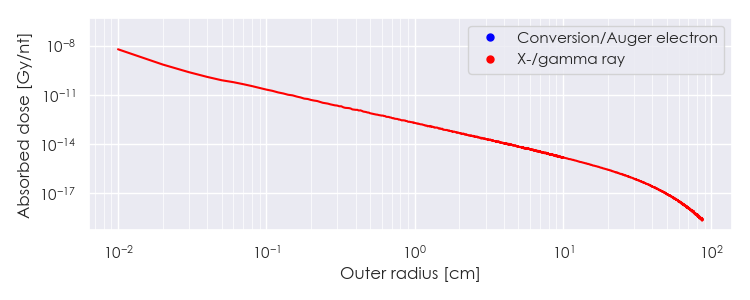

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/La-136 DPK.csv

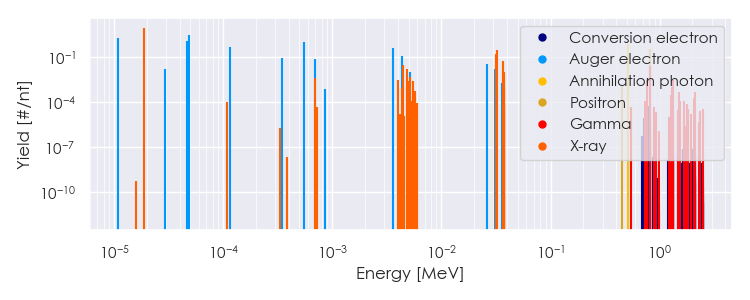

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/La-136 Summary Spectrum.csv
Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/La-136 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/La-136 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
1.86002e-05 |
8.653e+00 |
X-ray |
|
4.45292e-03 |
2.726e-02 |
X-ray |
|
4.82366e-03 |
1.604e-02 |
X-ray |
|
3.18187e-02 |
1.427e-01 |
X-ray |
|
3.22056e-02 |
2.628e-01 |
X-ray |
|
3.63167e-02 |
2.511e-02 |
X-ray |
|
3.63920e-02 |
4.866e-02 |
X-ray |
|
3.72607e-02 |
1.034e-02 |
X-ray |
|
5.11000e-01 |
7.064e-01 |
Annihilation photon |
|
8.18510e-01 |
2.300e-02 |
Gamma |
|
8.21545e-01 |
3.520e-01 |
Positron |
|
1.08630e-05 |
1.846e+00 |
Auger electron |
|
2.91100e-05 |
1.530e-02 |
Auger electron |
|
4.69849e-05 |
1.072e+00 |
Auger electron |
|
4.88206e-05 |
2.928e+00 |
Auger electron |
|
1.14462e-04 |
4.236e-01 |
Auger electron |
|
3.42556e-04 |
8.611e-02 |
Auger electron |
|
5.52294e-04 |
9.559e-01 |
Auger electron |
|
6.90671e-04 |
7.040e-02 |
Auger electron |
|
3.56936e-03 |
3.750e-01 |
Auger electron |
|
4.33590e-03 |
1.198e-01 |
Auger electron |
|
2.63448e-02 |
3.499e-02 |
Auger electron |
|
3.09583e-02 |
1.614e-02 |
Auger electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
