Radionuclide Dosimetric Data Sheets

Iridium-189

Isotope:  Ir-189
Atomic number (Z):  77
Mass number (A):  189
Neutron number (N):  112

Decay modes:  Electron capture
Half-life:  13.2 [d]
Decay constant:  6.0777e-07 [1/s]
Daughters:  Os-189m (7.43%), Os-189 (92.6%)
Radioactive daughters:  Os-189m

Mean alpha energy:  0.0 [MeV]
Mean electron energy:  0.04577 [MeV]
Mean photon energy:  0.07933 [MeV]
Air kerma rate constant, Γ₁₀:  1.323e-17 [Gy·m²/Bq·s]
Air kerma coefficient, K_air:  1.323e-17 [Gy·m²/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or electrons), Δ_wp:  7.333e-15 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δ_α:  0.000e+00 [Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δ_β-,β+,e-:  7.333e-15 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δ_p:  1.271e-14 [Gy·kg/Bq·s]

Dose point kernel source:  Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.

Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.

Download tabulated dose point kernel file here:  www.mirdsoft.org/products/MIRDspecs/Ir-189 DPK.csv

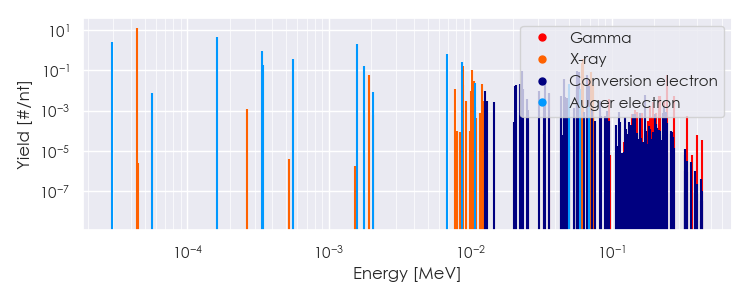

Spectra source:  ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).

Download tabulated summary spectra file here:  www.mirdsoft.org/products/MIRDspecs/Ir-189 Summary Spectrum.csv



Spectra source:  ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).

Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.

Download tabulated summary spectra file here:  www.mirdsoft.org/products/MIRDspecs/Ir-189 Summary Spectrum.csv



Energy [MeV]	Yield [#/nt] if > 0.01	Radiation type
4.40012e-05	1.332e+01	X-ray
1.92081e-03	5.773e-02	X-ray
7.84700e-03	1.140e-02	X-ray
8.83249e-03	1.962e-02	X-ray
8.90609e-03	1.730e-01	X-ray
1.03795e-02	1.093e-01	X-ray
1.04983e-02	1.095e-02	X-ray
1.05947e-02	3.133e-02	X-ray
1.21269e-02	2.083e-02	X-ray
5.90500e-02	1.200e-02	Gamma
6.16420e-02	2.237e-01	X-ray
6.31890e-02	3.854e-01	X-ray
6.95280e-02	3.540e-02	Gamma
7.12758e-02	4.184e-02	X-ray
7.16144e-02	8.087e-02	X-ray
7.35997e-02	1.873e-02	X-ray
2.45080e-01	6.000e-02	Gamma
2.96133e-05	2.604e+00	Auger electron
1.63618e-04	4.419e+00	Auger electron
3.35880e-04	8.920e-01	Auger electron
3.45590e-04	1.794e-01	Auger electron
5.64077e-04	3.560e-01	Auger electron
1.58151e-03	2.109e+00	Auger electron
1.77829e-03	1.648e-01	Auger electron
6.89962e-03	6.248e-01	Auger electron
8.80126e-03	2.483e-01	Auger electron
1.07342e-02	2.436e-02	Auger electron
2.08860e-02	1.758e-02	Conversion electron
2.11740e-02	2.002e-02	Conversion electron
2.24330e-02	2.012e-02	Conversion electron
2.32200e-02	9.461e-02	Conversion electron
2.37460e-02	1.140e-02	Conversion electron
3.37183e-02	2.530e-02	Conversion electron
4.61000e-02	3.970e-02	Conversion electron
4.99348e-02	2.209e-02	Auger electron
5.65780e-02	5.178e-02	Conversion electron
5.65983e-02	1.060e-02	Conversion electron
5.71040e-02	9.224e-02	Conversion electron
5.86510e-02	8.558e-02	Conversion electron
5.97656e-02	1.171e-02	Auger electron
6.70763e-02	5.750e-02	Conversion electron
6.95280e-02	1.655e-02	Conversion electron



Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:

National Nuclear Data Center (NNDC):  https://www.nndc.bnl.gov/nudat3/mird/

International Atomic Energy Agency (IAEA) Livechart:  https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html

ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107

Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789

MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6







MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
