Radionuclide Dosimetric Data Sheets
Indium-109m
Summary data
General
Classification
Isotope: In-109m
Atomic number (Z): 49
Mass number (A): 109
Neutron number (N): 60
Radioactive decay
Decay modes: Internal transition
Half-life: 1.34 [m]
Decay constant: 8.6212e-03 [1/s]
Daughters: In-109 (100.0%)
Radioactive daughters: In-109
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.04159 [MeV]
Mean photon energy: 0.6085 [MeV]
Air kerma rate constant, Γ10: 2.321e-17 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 2.321e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 6.663e-15 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
6.663e-15 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 9.749e-14
[Gy·kg/Bq·s]

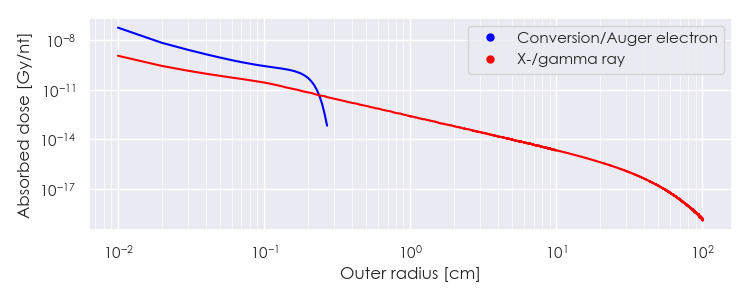

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/In-109m DPK.csv

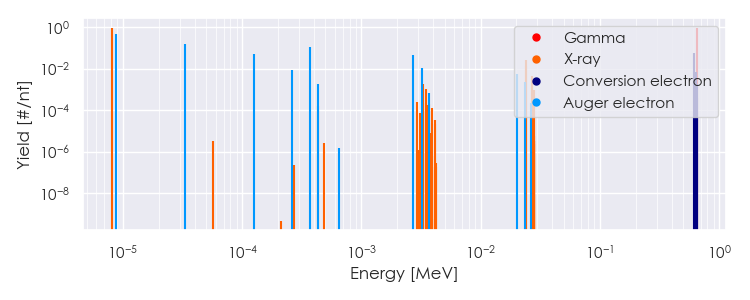

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/In-109m Summary Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/In-109m Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
8.12556e-06 |
9.243e-01 |
X-ray |
|
2.39785e-02 |
1.350e-02 |
X-ray |
|
2.41926e-02 |
2.532e-02 |
X-ray |
|
6.50100e-01 |
9.342e-01 |
Gamma |
|
8.85843e-06 |
4.584e-01 |
Auger electron |
|
3.35313e-05 |
1.611e-01 |
Auger electron |
|
1.25791e-04 |
5.014e-02 |
Auger electron |
|
3.70819e-04 |
1.135e-01 |
Auger electron |
|
2.73454e-03 |
4.499e-02 |
Auger electron |
|
3.21482e-03 |
1.100e-02 |
Auger electron |
|
6.22179e-01 |
5.493e-02 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
