Radionuclide Dosimetric Data Sheets
Iron-55
Summary data
General
Classification
Isotope: Fe-55
Atomic number (Z): 26
Mass number (A): 55
Neutron number (N): 29
Radioactive decay
Decay modes: Electron capture
Half-life: 2.737 [y]
Decay constant: 8.0252e-09 [1/s]
Daughters: Mn-55 (100.0%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.00416 [MeV]
Mean photon energy: 0.00166 [MeV]
Air kerma rate constant, Γ10: 4.927e-27 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 4.927e-27 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 6.665e-16 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
6.665e-16 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 2.660e-16
[Gy·kg/Bq·s]

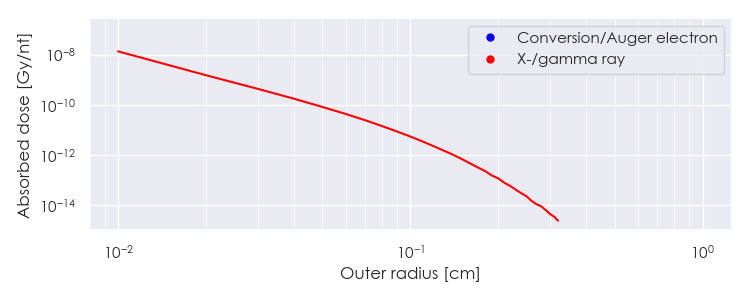

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Fe-55 DPK.csv

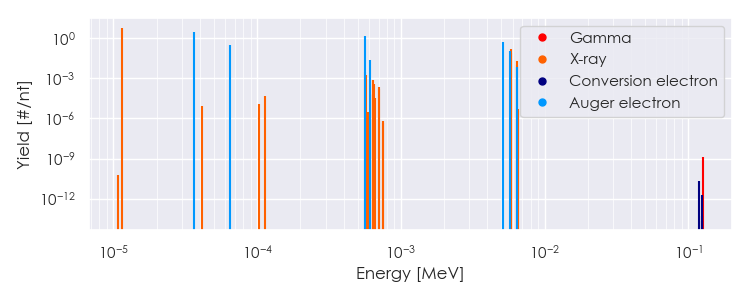

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Fe-55 Summary Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Fe-55 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
1.14853e-05 |
6.051e+00 |
X-ray |
|
5.84793e-03 |
8.113e-02 |
X-ray |
|
5.85866e-03 |
1.591e-01 |
X-ray |
|
6.45011e-03 |
1.903e-02 |
X-ray |
|
3.64544e-05 |
2.721e+00 |
Auger electron |
|
6.48980e-05 |
2.841e-01 |
Auger electron |
|
5.59386e-04 |
1.409e+00 |
Auger electron |
|
6.06838e-04 |
2.202e-02 |
Auger electron |
|
5.15113e-03 |
4.895e-01 |
Auger electron |
|
5.76225e-03 |
1.184e-01 |
Auger electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
