Radionuclide Dosimetric Data Sheets
Cesium-130
Summary data
General
Classification
Isotope: Cs-130
Atomic number (Z): 55
Mass number (A): 130
Neutron number (N): 75
Radioactive decay
Decay modes: β-, β+, Electron capture
Half-life: 29.21 [m]
Decay constant: 3.9550e-04 [1/s]
Daughters: Xe-130 (98.4%), Ba-130 (1.6%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.38685 [MeV]
Mean photon energy: 0.50259 [MeV]
Air kerma rate constant, Γ10: 3.983e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 2.084e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 6.198e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
6.198e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 8.052e-14
[Gy·kg/Bq·s]

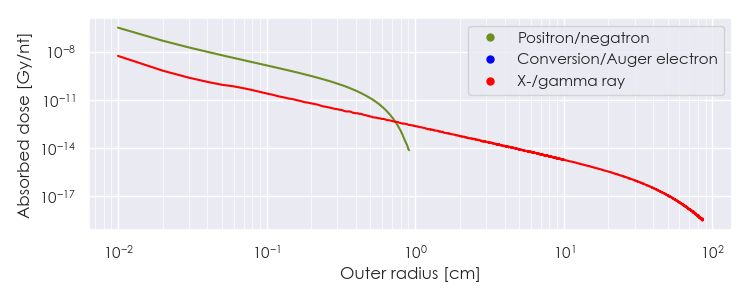

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Cs-130 DPK.csv

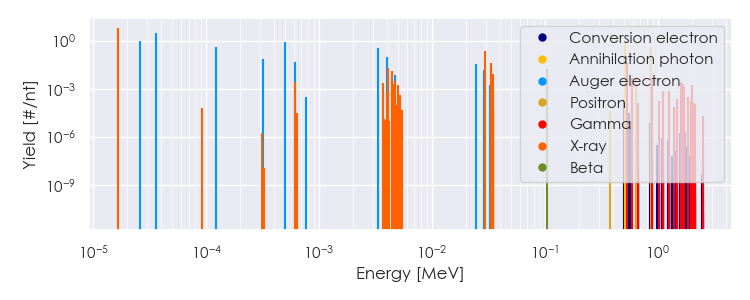

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Cs-130 Summary Spectrum.csv

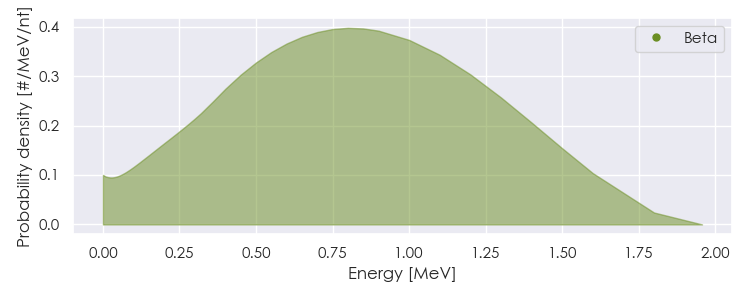

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Cs-130 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Cs-130 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
1.66177e-05 |
6.505e+00 |
X-ray |
|
4.09719e-03 |
2.081e-02 |
X-ray |
|
4.41300e-03 |
1.206e-02 |
X-ray |
|
2.94521e-02 |
1.200e-01 |
X-ray |
|
2.97812e-02 |
2.223e-01 |
X-ray |
|
3.35665e-02 |
2.087e-02 |
X-ray |
|
3.36295e-02 |
4.045e-02 |
X-ray |
|
5.11000e-01 |
8.711e-01 |
Annihilation photon |
|
5.36100e-01 |
3.838e-02 |
Gamma |
|
1.05293e-01 |
1.600e-02 |
Beta |
|
8.78949e-01 |
4.297e-01 |
Positron |
|
2.61907e-05 |
1.015e+00 |
Auger electron |
|
3.62440e-05 |
3.093e+00 |
Auger electron |
|
1.23733e-04 |
3.818e-01 |
Auger electron |
|
3.22153e-04 |
7.339e-02 |
Auger electron |
|
5.05183e-04 |
8.472e-01 |
Auger electron |
|
6.17484e-04 |
4.850e-02 |
Auger electron |
|
3.32555e-03 |
3.338e-01 |
Auger electron |
|
4.00288e-03 |
9.904e-02 |
Auger electron |
|
2.44715e-02 |
3.374e-02 |
Auger electron |
|
2.86854e-02 |
1.510e-02 |
Auger electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
