Radionuclide Dosimetric Data Sheets
Chromium-49
Summary data
General
Classification
Isotope: Cr-49
Atomic number (Z): 24
Mass number (A): 49
Neutron number (N): 25
Radioactive decay
Decay modes: β+, Electron capture
Half-life: 42.3 [m]
Decay constant: 2.7311e-04 [1/s]
Daughters: V-49 (100.0%)
Radioactive daughters: V-49
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.60465 [MeV]
Mean photon energy: 1.05379 [MeV]
Air kerma rate constant, Γ10: 3.346e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 3.922e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 9.688e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
9.688e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 1.688e-13
[Gy·kg/Bq·s]

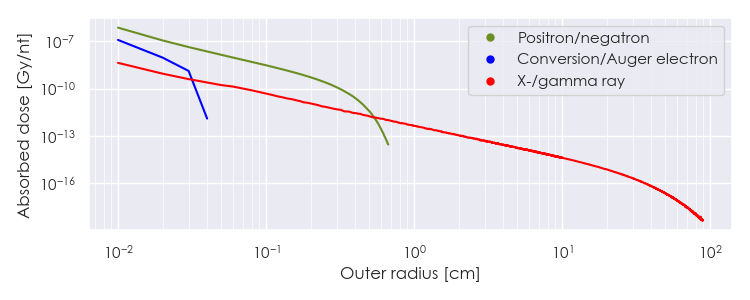

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Cr-49 DPK.csv

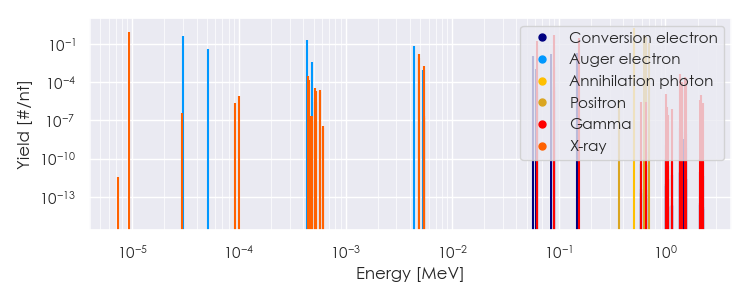

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Cr-49 Summary Spectrum.csv

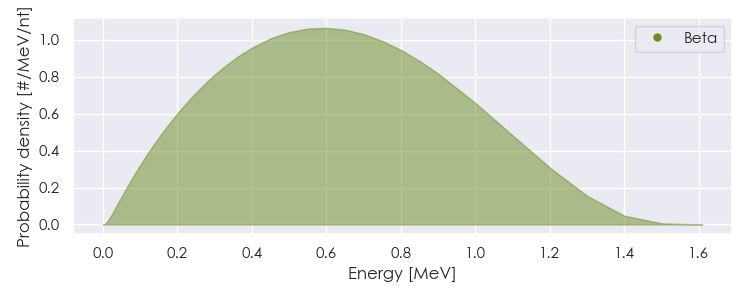

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Cr-49 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Cr-49 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
9.23903e-06 |
8.685e-01 |
X-ray |
|
4.91506e-03 |
1.639e-02 |
X-ray |
|
6.22890e-02 |
1.639e-01 |
Gamma |
|
9.06390e-02 |
5.320e-01 |
Gamma |
|
1.52928e-01 |
3.032e-01 |
Gamma |
|
5.11000e-01 |
1.854e+00 |
Annihilation photon |
|
6.26557e-01 |
4.631e-01 |
Positron |
|
6.54796e-01 |
3.468e-01 |
Positron |
|
6.96056e-01 |
1.168e-01 |
Positron |
|
2.99867e-05 |
4.275e-01 |
Auger electron |
|
5.14571e-05 |
3.848e-02 |
Auger electron |
|
4.35376e-04 |
1.861e-01 |
Auger electron |
|
4.34375e-03 |
6.899e-02 |
Auger electron |
|
4.83456e-03 |
1.624e-02 |
Auger electron |
|
5.68494e-02 |
1.174e-02 |
Conversion electron |
|
8.51994e-02 |
1.681e-02 |
Conversion electron |
|
1.47488e-01 |
2.001e-02 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
MIRDsoft MIRDspecs version 20250101 (www.mirdsoft.org)
