Radionuclide Dosimetric Data Sheets
Chromium-48
Summary data
General
Classification
Isotope: Cr-48
Atomic number (Z): 24
Mass number (A): 48
Neutron number (N): 24
Radioactive decay
Decay modes: β+, Electron capture
Half-life: 21.56 [h]
Decay constant: 8.9305e-06 [1/s]
Daughters: V-48 (100.0%)
Radioactive daughters: V-48
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.00856 [MeV]
Mean photon energy: 0.43632 [MeV]
Air kerma rate constant, Γ10: 1.464e-17 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 1.526e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 1.371e-15 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
1.371e-15 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 6.991e-14
[Gy·kg/Bq·s]

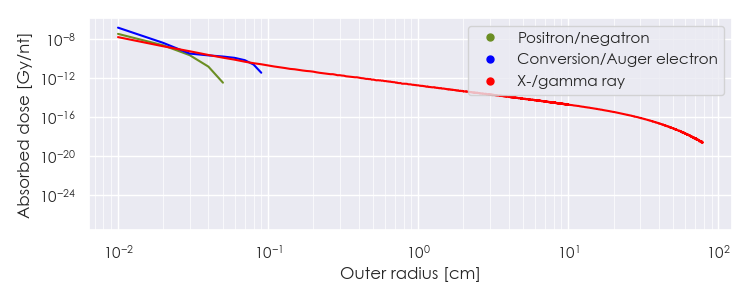

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Cr-48 DPK.csv
Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Cr-48 Summary Spectrum.csv

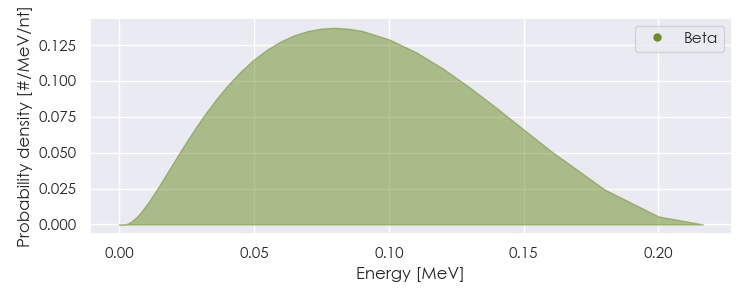

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Cr-48 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Cr-48 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
9.23846e-06 |
6.883e+00 |
X-ray |
|
4.90772e-03 |
6.567e-02 |
X-ray |
|
4.91507e-03 |
1.291e-01 |
X-ray |
|
5.38981e-03 |
1.500e-02 |
X-ray |
|
1.12310e-01 |
9.830e-01 |
Gamma |
|
3.08240e-01 |
1.000e+00 |
Gamma |
|
5.11000e-01 |
3.213e-02 |
Annihilation photon |
|
9.24814e-02 |
1.606e-02 |
Positron |
|
2.99676e-05 |
3.391e+00 |
Auger electron |
|
5.14571e-05 |
3.081e-01 |
Auger electron |
|
4.35408e-04 |
1.469e+00 |
Auger electron |
|
4.82050e-04 |
3.043e-02 |
Auger electron |
|
4.34375e-03 |
5.433e-01 |
Auger electron |
|
4.83456e-03 |
1.279e-01 |
Auger electron |
|
1.06870e-01 |
1.474e-02 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
