Radionuclide Dosimetric Data Sheets
Cadmium-109
Summary data
General
Classification
Isotope: Cd-109
Atomic number (Z): 48
Mass number (A): 109
Neutron number (N): 61
Radioactive decay
Decay modes: Electron capture
Half-life: 461.4 [d]
Decay constant: 1.7387e-08 [1/s]
Daughters: Ag-109 (100.0%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.0827 [MeV]
Mean photon energy: 0.02652 [MeV]
Air kerma rate constant, Γ10: 1.093e-17 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 1.093e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 1.325e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
1.325e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 4.249e-15
[Gy·kg/Bq·s]

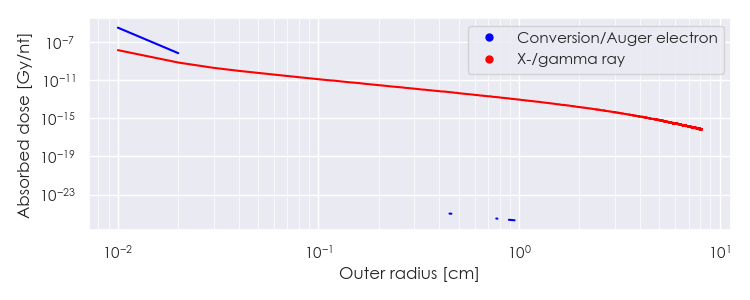

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Cd-109 DPK.csv

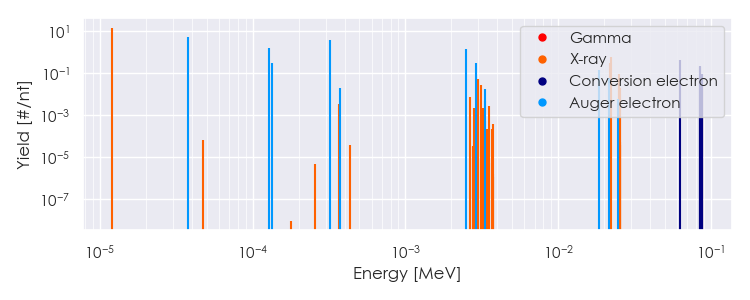

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Cd-109 Summary Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Cd-109 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
1.20786e-05 |
1.446e+01 |
X-ray |
|
2.97344e-03 |
5.056e-02 |
X-ray |
|
3.14510e-03 |
2.805e-02 |
X-ray |
|
2.19609e-02 |
2.921e-01 |
X-ray |
|
2.21389e-02 |
5.504e-01 |
X-ray |
|
2.48888e-02 |
4.799e-02 |
X-ray |
|
2.49204e-02 |
9.325e-02 |
X-ray |
|
2.54258e-02 |
1.886e-02 |
X-ray |
|
8.80336e-02 |
3.595e-02 |
Gamma |
|
3.78399e-05 |
5.268e+00 |
Auger electron |
|
1.27447e-04 |
1.473e+00 |
Auger electron |
|
1.34797e-04 |
3.002e-01 |
Auger electron |
|
3.19044e-04 |
3.560e+00 |
Auger electron |
|
3.71588e-04 |
1.851e-02 |
Auger electron |
|
2.49627e-03 |
1.363e+00 |
Auger electron |
|
2.90415e-03 |
2.954e-01 |
Auger electron |
|
3.32996e-03 |
1.699e-02 |
Auger electron |
|
1.84717e-02 |
1.412e-01 |
Auger electron |
|
2.14605e-02 |
5.704e-02 |
Auger electron |
|
6.25446e-02 |
4.088e-01 |
Conversion electron |
|
8.42502e-02 |
3.245e-02 |
Conversion electron |
|
8.45055e-02 |
1.918e-01 |
Conversion electron |
|
8.46836e-02 |
2.230e-01 |
Conversion electron |
|
8.74651e-02 |
9.213e-02 |
Conversion electron |
|
8.80336e-02 |
1.594e-02 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
