Radionuclide Dosimetric Data Sheets
Silver-113
Summary data
General
Classification
Isotope: Ag-113
Atomic number (Z): 47
Mass number (A): 113
Neutron number (N): 66
Radioactive decay
Decay modes: β-
Half-life: 5.37 [h]
Decay constant: 3.5855e-05 [1/s]
Daughters: Cd-113 (98.3%), Cd-113m (1.74%)
Radioactive daughters: Cd-113, Cd-113m
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.7614 [MeV]
Mean photon energy: 0.07194 [MeV]
Air kerma rate constant, Γ10: 2.662e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 2.662e-18 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 1.220e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
1.220e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 1.153e-14
[Gy·kg/Bq·s]

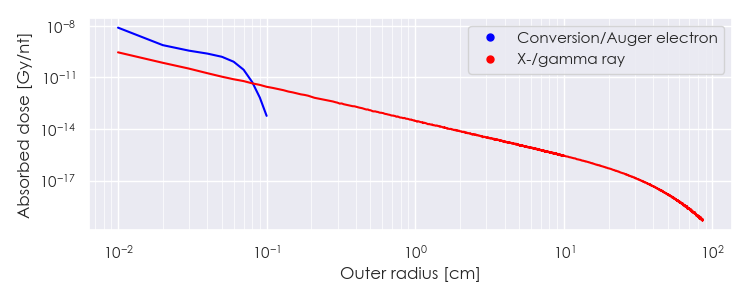

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Ag-113 DPK.csv
Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Ag-113 Summary Spectrum.csv

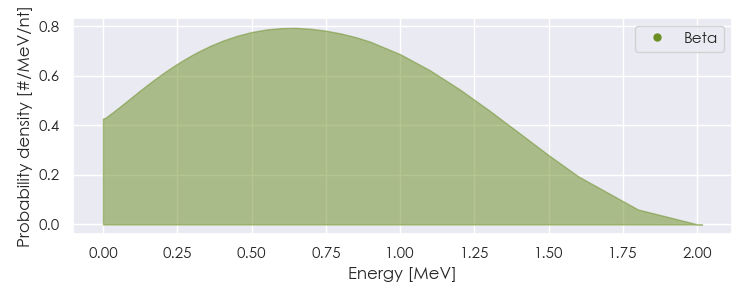

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Ag-113 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Ag-113 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
1.71383e-05 |
6.807e-02 |
X-ray |
|
2.58800e-01 |
1.635e-02 |
Gamma |
|
2.98600e-01 |
1.000e-01 |
Gamma |
|
3.16300e-01 |
1.343e-02 |
Gamma |
|
2.76327e-01 |
2.092e-02 |
Beta |
|
6.57279e-01 |
1.694e-02 |
Beta |
|
6.58966e-01 |
9.366e-02 |
Beta |
|
7.93728e-01 |
8.469e-01 |
Beta |
|
3.66234e-05 |
2.447e-02 |
Auger electron |
|
3.46636e-04 |
1.626e-02 |
Auger electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
