Radionuclide Dosimetric Data Sheets
Silver-106
Summary data
General
Classification
Isotope: Ag-106
Atomic number (Z): 47
Mass number (A): 106
Neutron number (N): 59
Radioactive decay
Decay modes: β-, β+, Electron capture
Half-life: 23.96 [m]
Decay constant: 4.8216e-04 [1/s]
Daughters: Pd-106 (99.0%), Cd-106 (1.0%)
Radioactive daughters: None
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.49666 [MeV]
Mean photon energy: 0.69964 [MeV]
Air kerma rate constant, Γ10: 6.972e-18 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 2.964e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 7.957e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
7.957e-14 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 1.121e-13
[Gy·kg/Bq·s]

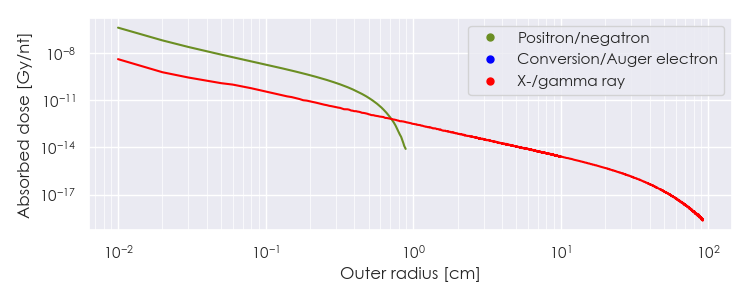

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Ag-106 DPK.csv
Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Ag-106 Summary Spectrum.csv
Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Ag-106 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Ag-106 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
7.85943e-06 |
3.252e+00 |
X-ray |
|
2.82809e-03 |
1.074e-02 |
X-ray |
|
2.09884e-02 |
8.297e-02 |
X-ray |
|
2.11504e-02 |
1.567e-01 |
X-ray |
|
2.37657e-02 |
1.350e-02 |
X-ray |
|
2.37942e-02 |
2.624e-02 |
X-ray |
|
5.11000e-01 |
1.171e+00 |
Annihilation photon |
|
5.11900e-01 |
1.686e-01 |
Gamma |
|
5.35550e-02 |
1.000e-02 |
Beta |
|
6.36283e-01 |
6.437e-02 |
Positron |
|
8.68093e-01 |
5.209e-01 |
Positron |
|
3.81980e-05 |
1.225e+00 |
Auger electron |
|
1.21680e-04 |
7.419e-02 |
Auger electron |
|
1.26000e-04 |
3.220e-01 |
Auger electron |
|
2.92898e-04 |
7.948e-01 |
Auger electron |
|
2.38226e-03 |
3.027e-01 |
Auger electron |
|
2.75692e-03 |
6.139e-02 |
Auger electron |
|
1.76856e-02 |
4.377e-02 |
Auger electron |
|
2.05196e-02 |
1.737e-02 |
Auger electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
