Radionuclide Dosimetric Data Sheets
Actinium-233
Summary data
General
Classification
Isotope: Ac-233
Atomic number (Z): 89
Mass number (A): 233
Neutron number (N): 144
Radioactive decay
Decay modes: β-
Half-life: 145.0 [s]
Decay constant: 4.7803e-03 [1/s]
Daughters: Th-233 (100.0%)
Radioactive daughters: Th-233
Dosimetric constants
Mean alpha energy: 0.0 [MeV]
Mean electron energy: 0.8355 [MeV]
Mean photon energy: 0.49926 [MeV]
Air kerma rate constant, Γ10: 1.920e-17 [Gy·m2/Bq·s]
Air kerma coefficient, Kair: 1.920e-17 [Gy·m2/Bq·s]
Equilibrium dose constant for weakly-penetrating radiations (α and/or
electrons), Δwp: 1.339e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for alphas, Δα: 0.000e+00
[Gy·kg/Bq·s]
Equilibrium dose constant for betas/electrons, Δβ-,β+,e-:
1.339e-13 [Gy·kg/Bq·s]
Equilibrium dose constant for photons, Δp: 7.999e-14
[Gy·kg/Bq·s]

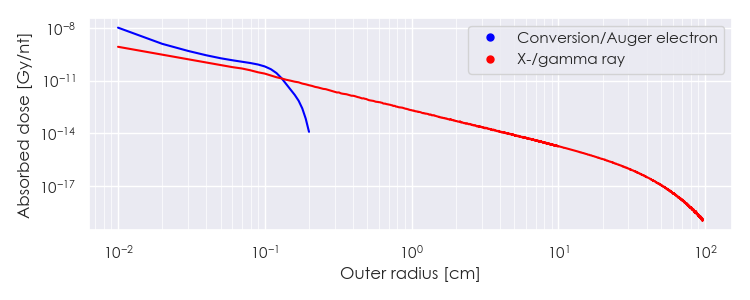

Dose point kernels (plot)
Dose point kernel source: Graves, et al. Medical Physics. 2019 Nov.; 46(11):5284-5293.
Note: Bins are spaced every 0.1 mm until a radius of 10 cm, and every 1 mm until a radius of 2 m.
Download tabulated dose point kernel file here: www.mirdsoft.org/products/MIRDspecs/Ac-233 DPK.csv

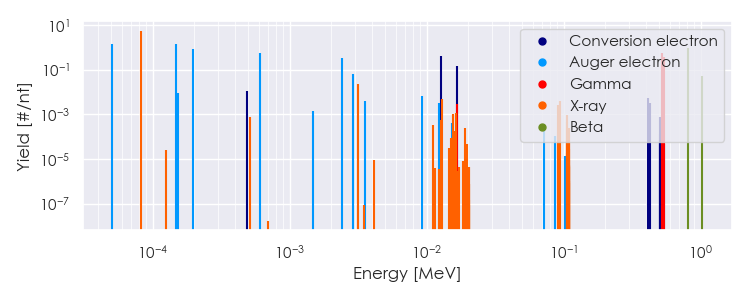

Summary spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Ac-233 Summary Spectrum.csv

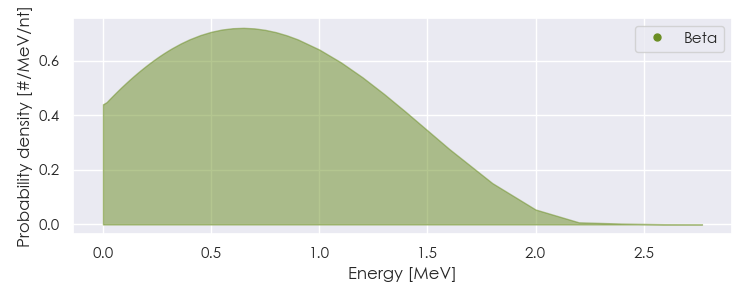

Beta spectra (plot)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Download tabulated beta spectra file here: www.mirdsoft.org/products/MIRDspecs/Ac-233 Beta Spectrum.csv
Tabulated data
Summary spectra (table)
Spectra source: ICRP Publication 107: Nuclear Decay Data for Dosimetric Calculations. Ann. ICRP 2008, 38 (3).
Note: Radiations with yield < 0.01 are excluded from the table, but are available in the linked *.csv data.
Download tabulated summary spectra file here: www.mirdsoft.org/products/MIRDspecs/Ac-233 Summary Spectrum.csv
|
Energy [MeV] |
Yield [#/nt] if > 0.01 |
Radiation type |
|
8.19771e-05 |
5.625e+00 |
X-ray |
|
3.14495e-03 |
2.234e-02 |
X-ray |
|
5.22800e-01 |
5.640e-01 |
Gamma |
|
5.39600e-01 |
3.760e-01 |
Gamma |
|
8.09909e-01 |
9.500e-01 |
Beta |
|
1.03357e+00 |
5.000e-02 |
Beta |
|
5.07600e-05 |
1.426e+00 |
Auger electron |
|
1.48225e-04 |
1.449e+00 |
Auger electron |
|
1.97575e-04 |
8.505e-01 |
Auger electron |
|
4.84999e-04 |
1.081e-02 |
Conversion electron |
|
6.06836e-04 |
5.527e-01 |
Auger electron |
|
2.41770e-03 |
3.495e-01 |
Auger electron |
|
2.91211e-03 |
6.471e-02 |
Auger electron |
|
1.27638e-02 |
4.133e-01 |
Conversion electron |
|
1.68000e-02 |
1.464e-01 |
Conversion electron |
Useful Links
Isotope decay characteristics are periodically updated as better measurements can be made - changes that may not be reflected on this page. Please see useful links:
National Nuclear Data Center (NNDC): https://www.nndc.bnl.gov/nudat3/mird/
International Atomic Energy Agency (IAEA) Livechart: https://www-nds.iaea.org/relnsd/vcharthtml/VChartHTML.html
Reference Links
ICRP Report 107: https://www.icrp.org/publication.asp?id=ICRP%20Publication%20107
Graves et al. Dose Point Kernels: https://doi.org/10.1002/mp.13789
MIRD Decay Schemes 2nd Edition: https://sites.snmmi.org/SNMMI-MAIN/iCore/Store/StoreLayouts/Item_Detail.aspx?iProductCode=0-932004-80-6
